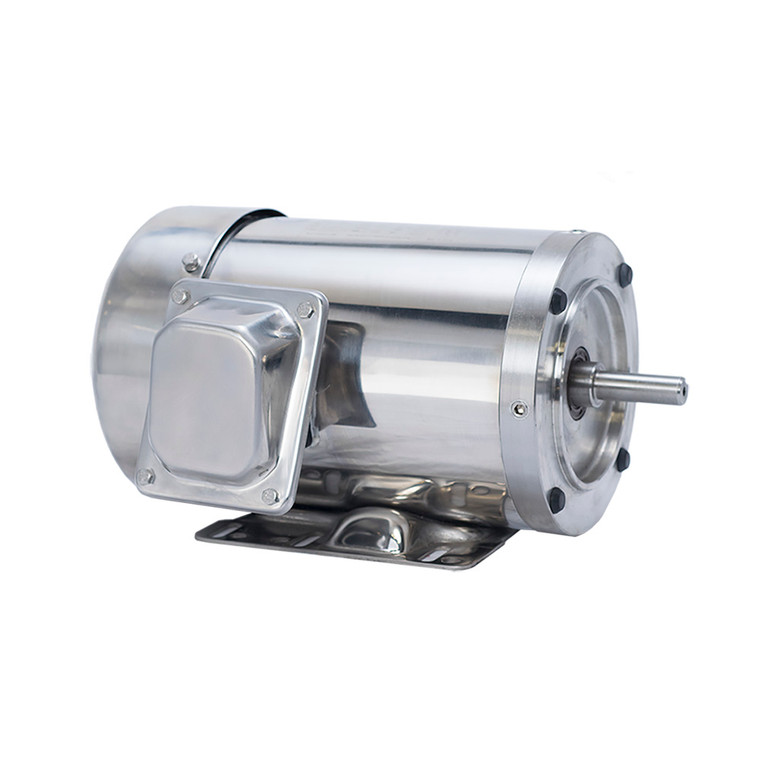

Galt Electric TEFC Stainless Steel Motor GST00104-143T-CK, 1HP, 1800RPM, 3-Phase, 208,230,460V, 60Hz, 143TC (GST0010-4-143TC-K)

Brand:
GALT ELECTRIC
Model:
GST0010-4-143TC-K
Condition:
New
0 Customer Reviews
Out Of Stock
List Price:  $1,068.92
Online Price: $534.46
Adding to cart… The item has been added
  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings
  • 1.15 Service factor
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90° increment rotatable)
  • Lead support gasketing
  • C-faces standard
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • Shaft grounding protection available
  • Standard F1 assembly
  • Easy to read laser etched nameplate

Manufacturer's Website

https://www.galtelectric.com


Technical Specifications

Brand:
GALT ELECTRIC
Product Condition:
New
Warranty:
3 Years
Horsepower Rating:
1 HP
Synchronous RPM:
1800 RPM
Frame Size:
143TC
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Power Factor:
0.71
Efficiency:
85.5%
Construction:
Rolled Stainless Steel
C Dimension:
3
Rated Input Frequency:
60 Hz
Rated Amps:
3.1 A
Series:
GST

Product Information

GALT ELECTRIC GST Series

Galt Electric offers its latest electric motors, including TEFC and ODP enclosures in cast iron, rolled steel, and stainless steel (TEFC only). Galt Electric motors are engineered to last in an industrial environment. Our motors will keep your operations up and running, with a precision balanced aluminum rotor, oversized bearing, inverter duty Class F insulation, better fit and finish, and many other features — all backed by a 3 year warranty. Our engineering prepares for the unexpected, so you don’t have to.
