Technical Specifications
Brand:
GALT ELECTRIC
Product Condition:
New
Warranty:
3 Years
Horsepower Rating:
1 HP
Synchronous RPM:
1800 RPM
Frame Size:
56C
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Power Factor:
0.71
Efficiency:
85.5%
Construction:
Rolled Stainless Steel
C Dimension:
3
Rated Input Frequency:
60 Hz
Rated Amps:
3.1 A
Product Information

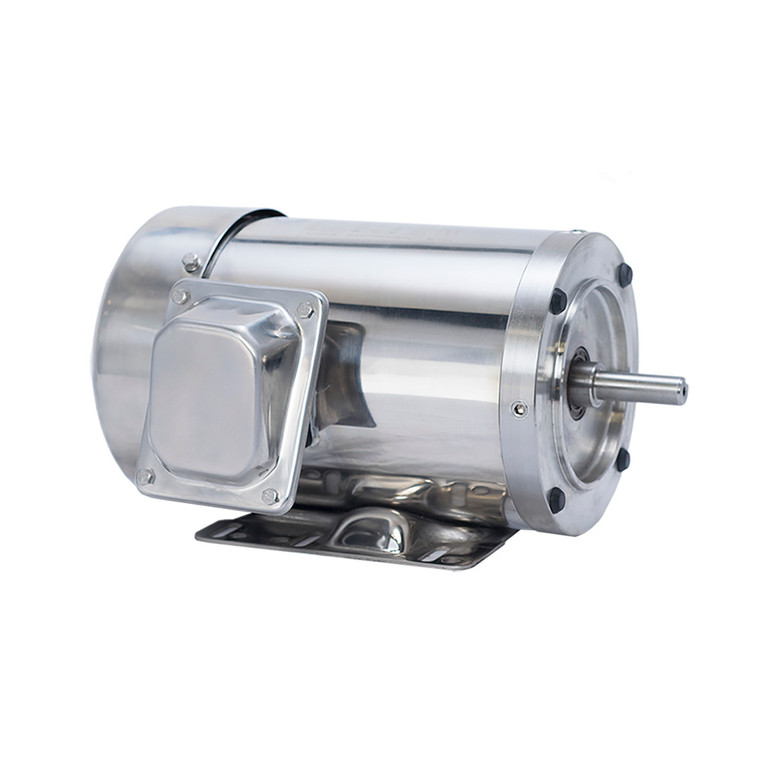

GALT ELECTRIC GST Series
MOTOR, 1HP, 1800RPM, SS TEFC, 56C
Highlights
- Better Fit and finish
- Oversized bearings
- Sealed bearings
- 1.15 Service factor
- Double drilled feet for most ratings
- Premium efficiency or above
- Fully gasketed junction box (90° increment rotatable)
- Lead support gasketing
- C-faces standard
- Mounting in any direction
- Inverter duty insulation system with VPI
- Shaft grounding protection available
- Standard F1 assembly
- Easy to read laser etched nameplate
