US Motors - Nidec

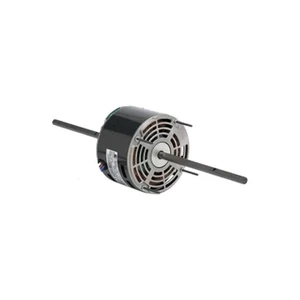

- US Motors (Nidec), AC Motor, NA1076, 0.75 HP, 1200 RPM, Single Phase, 208-230 V, 60 Hz, 48Y
- Phase: Single Phase
- Rated Input Frequency: 60 Hz
- Frame Size: 48Y
- Insulation Class: B
- Rated RPM: 1075 RPM
- Synchronous RPM: 1200 RPM
- Motor Type: Air Handling (HVAC)
- Drawing No: drawing
- Motor Enclosure Type: Open Air Over (OAO)
- Brand: US Motors (Nidec)
- Horsepower Rating: 0.75 HP
- Rated Voltage: 208 V, 230 V
- Duty Cycle: Continuous
- Service Factor: 1
- Product Condition: New
- Full Load Torque: 60.020000
- Bearing Type: SAB
- Rated Supply Voltage: 208-230 V
- Model: K055RKU2200011B
- Motor Full Load Amps: 4.8 A
- US Motors (Nidec), AC Motor, 8D25P2C, 25 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 284T
- Phase: Three Phase
- Rated Input Frequency: 60 Hz
- Frame Size: 284T
- Insulation Class: F
- Rated RPM: 1775 RPM
- Synchronous RPM: 1800 RPM
- Motor Type: Severe Duty
- Construction: Cast Iron
- Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Brand: US Motors (Nidec)
- Horsepower Rating: 25 HP
- Rated Voltage: 460 V
- Duty Cycle: Continuous
- Service Factor: 1.15
- Product Condition: New
- Full Load Torque: 73.900000
- Bearing Type: 50BC03J3
- Rated Supply Voltage: 460 V
- Motor Design Class: B
- Efficiency: 93.6%
- Model: GA41
- Motor Full Load Amps: 29.2 A
- C Dimension: 27.600000
- US Motors (Nidec), AC Motor, 8D10P2C, 10 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 215T
- Phase: Three Phase
- Rated Input Frequency: 60 Hz
- Frame Size: 215T
- Insulation Class: F
- Rated RPM: 1770 RPM
- Synchronous RPM: 1800 RPM
- Motor Type: Severe Duty
- Construction: Cast Iron
- Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Brand: US Motors (Nidec)
- Horsepower Rating: 10 HP
- Rated Voltage: 460 V
- Duty Cycle: Continuous
- Service Factor: 1.15
- Product Condition: New
- Full Load Torque: 29.700000
- Bearing Type: 40BC02J3
- Rated Supply Voltage: 460 V
- Motor Design Class: B
- Efficiency: 91.7%
- Model: GE43
- Motor Full Load Amps: 12.8 A
- US Motors (Nidec), AC Motor, 8D5P2C, 5 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 184T
- Phase: Three Phase
- Rated Input Frequency: 60 Hz
- Frame Size: 184T
- Insulation Class: F
- Rated RPM: 1760 RPM
- Synchronous RPM: 1800 RPM
- Motor Type: Severe Duty
- Construction: Cast Iron
- Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Brand: US Motors (Nidec)
- Horsepower Rating: 5 HP
- Rated Voltage: 460 V
- Duty Cycle: Continuous
- Service Factor: 1.15
- Product Condition: New
- Full Load Torque: 14.900000
- Bearing Type: 30BC02J3
- Rated Supply Voltage: 460 V
- Motor Design Class: B
- Efficiency: 89.5%
- Model: GF45
- Motor Full Load Amps: 6.3 A
- US Motors (Nidec), AC Motor, 8D40P2C, 40 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 324T
- Phase: Three Phase
- Rated Input Frequency: 60 Hz
- Frame Size: 324T
- Insulation Class: F
- Rated RPM: 1780 RPM
- Synchronous RPM: 1800 RPM
- Motor Type: Severe Duty
- Construction: Cast Iron
- Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Brand: US Motors (Nidec)
- Horsepower Rating: 40 HP
- Rated Voltage: 460 V
- Duty Cycle: Continuous
- Service Factor: 1.15
- Product Condition: New
- Full Load Torque: 118.100000
- Bearing Type: 55BC03J3
- Rated Supply Voltage: 460 V
- Motor Design Class: B
- Efficiency: 94.1%
- Model: GC37
- Motor Full Load Amps: 46 A
- US Motors (Nidec), AC Motor, 8D30P2C, 30 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 286T
- Phase: Three Phase
- Rated Input Frequency: 60 Hz
- Frame Size: 286T
- Insulation Class: F
- Rated RPM: 1775 RPM
- Synchronous RPM: 1800 RPM
- Motor Type: Severe Duty
- Construction: Cast Iron
- Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Brand: US Motors (Nidec)
- Horsepower Rating: 30 HP
- Rated Voltage: 460 V
- Duty Cycle: Continuous
- Service Factor: 1.15
- Product Condition: New
- Full Load Torque: 88.700000
- Bearing Type: 50BC03J3
- Rated Supply Voltage: 460 V
- Motor Design Class: B
- Efficiency: 93.6%
- Model: GA43
- Motor Full Load Amps: 35 A
- C Dimension: 27.600000
- US Motors (Nidec), AC Motor, 8D15P2C, 15 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 254T
- Phase: Three Phase
- Rated Input Frequency: 60 Hz
- Frame Size: 254T
- Insulation Class: F
- Rated RPM: 1775 RPM
- Synchronous RPM: 1800 RPM
- Motor Type: Severe Duty
- Construction: Cast Iron
- Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Brand: US Motors (Nidec)
- Horsepower Rating: 15 HP
- Rated Voltage: 460 V
- Duty Cycle: Continuous
- Service Factor: 1.15
- Product Condition: New
- Full Load Torque: 44.400000
- Bearing Type: 45BC03J3
- Rated Supply Voltage: 460 V
- Motor Design Class: B
- Efficiency: 92.4%
- Model: GB36
- Motor Full Load Amps: 17.7 A
- C Dimension: 25.000000
- US Motors (Nidec), AC Motor, 8D7P2C, 7.5 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 213T
- Phase: Three Phase
- Rated Input Frequency: 60 Hz
- Frame Size: 213T
- Insulation Class: F
- Rated RPM: 1770 RPM
- Synchronous RPM: 1800 RPM
- Motor Type: Severe Duty
- Construction: Cast Iron
- Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Brand: US Motors (Nidec)
- Horsepower Rating: 7.5 HP
- Rated Voltage: 460 V
- Duty Cycle: Continuous
- Service Factor: 1.15
- Product Condition: New
- Full Load Torque: 22.200000
- Bearing Type: 40BC02J3
- Rated Supply Voltage: 460 V
- Motor Design Class: B
- Efficiency: 91.7%
- Model: GE41
- Motor Full Load Amps: 9.6 A
- US Motors (Nidec), AC Motor, 8D3P2C, 3 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 182T
- Phase: Three Phase
- Rated Input Frequency: 60 Hz
- Frame Size: 182T
- Insulation Class: F
- Rated RPM: 1770 RPM
- Synchronous RPM: 1800 RPM
- Motor Type: Severe Duty
- Construction: Cast Iron
- Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Brand: US Motors (Nidec)
- Horsepower Rating: 3 HP
- Rated Voltage: 460 V
- Duty Cycle: Continuous
- Service Factor: 1.15
- Product Condition: New
- Full Load Torque: 8.900000
- Bearing Type: 30BC02J3
- Rated Supply Voltage: 460 V
- Motor Design Class: B
- Efficiency: 89.5%
- Model: GF43
- Motor Full Load Amps: 3.9 A
- US Motors (Nidec), AC Motor, 8D2P2C, 2 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 145T
- Phase: Three Phase
- Rated Input Frequency: 60 Hz
- Frame Size: 145T
- Insulation Class: F
- Rated RPM: 1745 RPM
- Synchronous RPM: 1800 RPM
- Motor Type: Severe Duty
- Construction: Cast Iron
- Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Brand: US Motors (Nidec)
- Horsepower Rating: 2 HP
- Rated Voltage: 460 V
- Duty Cycle: Continuous
- Service Factor: 1.15
- Product Condition: New
- Full Load Torque: 6.000000
- Bearing Type: 25BC02J3
- Rated Supply Voltage: 460 V
- Motor Design Class: B
- Efficiency: 86.5%
- Model: GG47
- Motor Full Load Amps: 2.7 A
