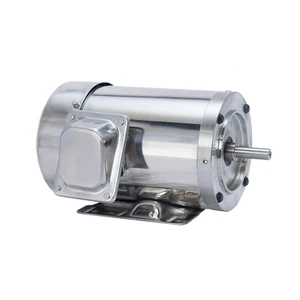

Galt Electric TEFC Stainless Steel Motor GST00204-56C-K, 2HP, 1800RPM, 3-Phase, 208,230,460V, 60Hz, 56C

Brand: GALT ELECTRIC
Model: GST00204-56C-K
Condition: New
Rating:
0% of 100

In stock

Highlights

  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings
  • 1.15 Service factor
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90° increment rotatable)
  • Lead support gasketing
  • C-faces standard
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • Shaft grounding protection available
  • Standard F1 assembly
  • Easy to read laser etched nameplate

Manufacturer's Website

https://www.galtelectric.com

Technical Specifications
Phase Rating 3 Phase Input - 3 Phase Output
Insulation Class H
Rated Input Frequency 60 Hz
Series GST
Rated Amps 6.2 A
Power Factor 0.75
Construction Rolled Stainless Steel
Motor Enclosure Type Totally Enclosed Fan Cooled (TEFC)
Frame Size 56C
Brand GALT ELECTRIC
Horsepower Rating 2 HP
Rated Voltage 208 V, 230 V, 460 V
Duty Cycle Continuous
Service Factor 1.15
Product Condition New
Efficiency 86.5%
C Dimension 3.000000
Warranty 3 Years
Product Information

GALT ELECTRIC GST Series

MOTOR, 2HP, 1800RPM, SS TEFC, 56C

Highlights

  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings
  • 1.15 Service factor
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90° increment rotatable)
  • Lead support gasketing
  • C-faces standard
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • Shaft grounding protection available
  • Standard F1 assembly
  • Easy to read laser etched nameplate

Manufacturer's Website

https://www.galtelectric.com
