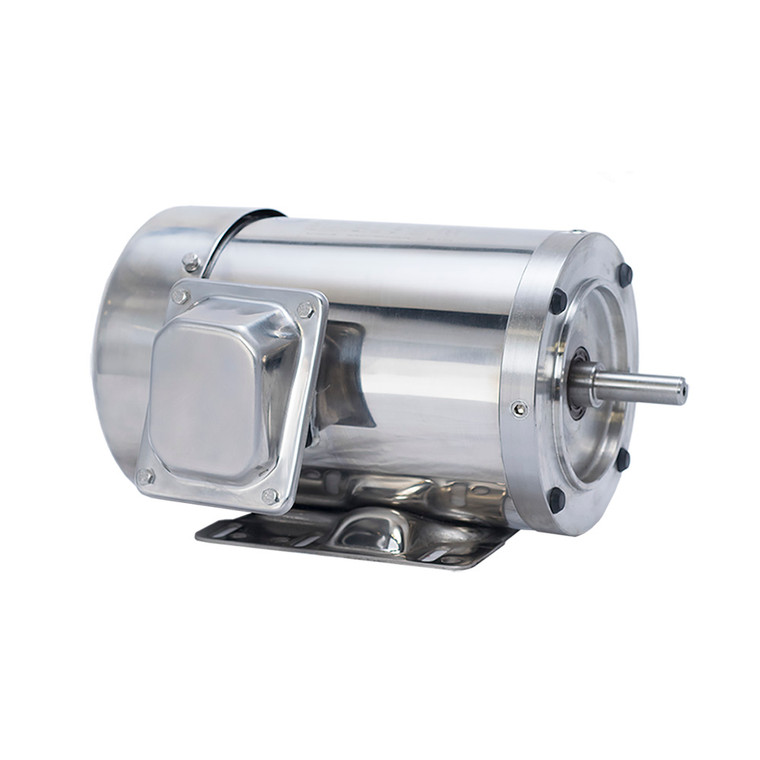

Galt Electric TEFC Stainless Steel Motor GST00054-56C-K, 0.5HP, 1800RPM, 3-Phase, 208,230,460V, 60Hz, 56C

Brand: GALT ELECTRIC
Model: GST00054-56C-K
Condition: New
Rating:
0% of 100

In stock
$380.35

Highlights

  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings
  • 1.15 Service factor
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90° increment rotatable)
  • Lead support gasketing
  • C-faces standard
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • Shaft grounding protection available
  • Standard F1 assembly
  • Easy to read laser etched nameplate

Manufacturer's Website

https://www.galtelectric.com

Technical Specifications
Rated Input Frequency 60 Hz
Frame Size 56C
Insulation Class F
Series GST
Power Factor 0.78
Construction Rolled Stainless Steel
Motor Enclosure Type Totally Enclosed Fan Cooled (TEFC)
Brand GALT ELECTRIC
Horsepower Rating 0.5 HP
Rated Voltage 208 V, 230 V, 460 V
Duty Cycle Continuous
Service Factor 1.15
Product Condition New
Ambient Tempurature Rating 40 C
Rated Amps 1.8 A
Efficiency 82.5%
C Dimension 3.000000
Warranty 3 Years
Product Information

GALT ELECTRIC GST Series

MOTOR, 0.5HP, 1800RPM, SS TEFC, 56C

Highlights

  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings
  • 1.15 Service factor
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90° increment rotatable)
  • Lead support gasketing
  • C-faces standard
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • Shaft grounding protection available
  • Standard F1 assembly
  • Easy to read laser etched nameplate

Manufacturer's Website

https://www.galtelectric.com
