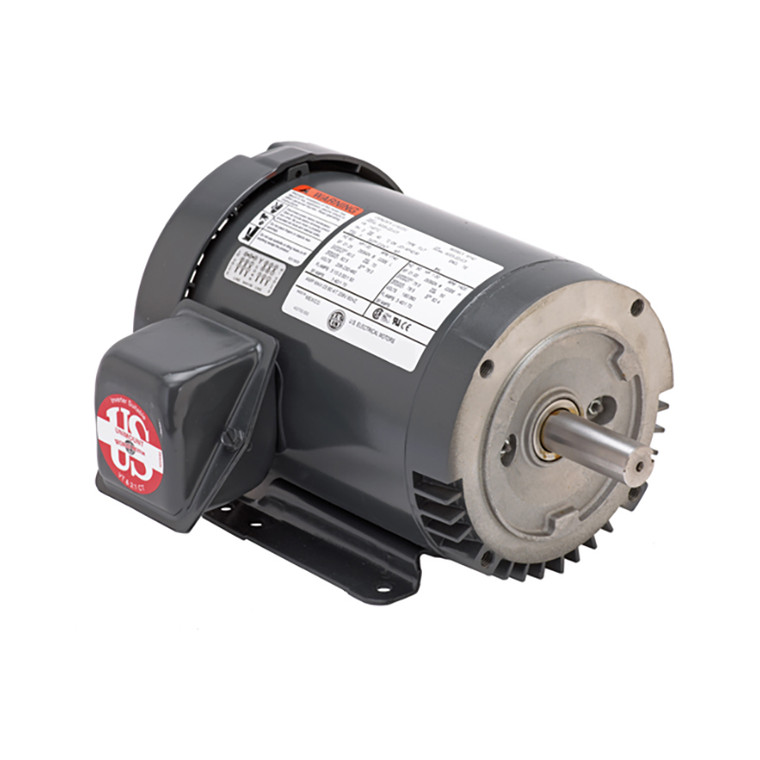

US Motors (Nidec), AC Motor, U13P3GC, 0.33 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 56C (U13P3GC)

US Motors (Nidec), AC Motor, U13P3GC, 0.33 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 56C (U13P3GC)

Brand:
US Motors (Nidec)
Model:
U13P3GC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

1/3 HP, 1170 RPM, U13P3GC, 575 V, 60 HZ, 56C
Download Brochure
Download Manual

Steel Edge

APPLICATIONS:

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

FEATURES:

  • Rolled Steel Frame
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • "CE" Mark on Nameplate (140 Frame & Larger)
  • Shaft Slinger On Pulley End
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Sine Wave Power
  • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
