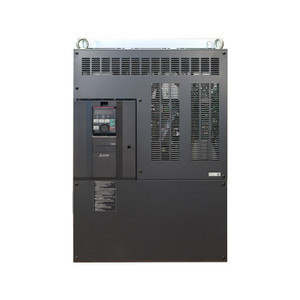

800HP 460V Mitsubishi F800 VFD, Inverter, AC Drive FR-F842-10940-3-60 (FR-F842-10940-3-60)

Brand:
MITSUBISHI
Model:
FR-F842-10940-3-60
Condition:
New
0 Customer Reviews
Out Of Stock
List Price:  $51,636.00
Online Price: $41,308.80
Adding to cart… The item has been added
  • NEMA 1 / UL-1 rated: FR-F800 is Plenum-Rated and can be mounted as a stand-alone unit when required – no need to provide a separate enclosure*
  • Built-in BACnet MS/TP or Modbus RTU communications: Capability for simple integration into HVAC communication networks
  • Built-in filter: Limits the effects of radio noise on sensitive equipment
  • Built-in PLC: Allows the drive to be customized to individual requirements and can avoid the need to have a separate master controller
  • Optimum Excitation Control: FR-F800 uses vector drive technology to calculate motor load and ensures maximum energy savings, even if motor loading changes
  • 3 programmable skip frequencies: Avoid points of mechanical resonance in ducting and pipework.
  • Drive settings can be uploaded or downloaded: Using a standard USB memory stick
  • Real-time clock: Drive trip messages are ‘time stamped’ for diagnostic purposes **
  • Bi-Directional Coasting Motor Restart: FR-F800 can safely ‘catch’ and control a motor which is already spinning (in either direction) on start-up.
  • Advanced PID control features:
  • 2 Independent PID loops
  • Pre-Charge Mode
  • Sleep Mode
  • Multiple Motor control (up to 4)
  • Selectable response to ‘loss of signal’
  • Control of high efficiency IPM motors
  • Advanced Power Monitoring Capability: Including pulse train output
  • UL-approved rating: For single phase operation (coming soon)
  • Out-of-range warning system: Detects broken drive belts and other potential mechanical problems

Notes
* Drive Sizes up to 40HP
** Requires the use of the FR-LU08 keypad


Technical Specifications

Model:
FR-F842-10940-3-60
Brand:
MITSUBISHI
Product Condition:
New
Horsepower Rating:
800 HP
HP Rating @ 110% OL:
800 HP
Rated Amps:
1094 A
Amp Rating @ 110% OL:
1094 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
1094 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Three Phase
Enclosure Rating:
IP 00
Frame Size:
Q
Series:
F800
Height:
62.20 in
Width:
26.80 in
Depth:
17.30 in

Product Information

MITSUBISHI F800 Series

***This unit must be paired with a FR-CC2 module unit to function!

Option 1: FR-F842-10940-3-60+FR-CC2-H500K-60

Option 2: FR-F842-10940-3-60+FR-CC2-H560K-60

Dimensions

P frame: (H) 52.4” (W) 21.3” (D) 17.3”
Q frame: (H) 62.2” (W) 26.8” (D) 17.3”
R frame: (H) 52.4” (W) 23.6” (D) 17.3”
S frame: (H) 62.2” (W) 23.6” (D) 17.3”

Mitsubishi F800 Series VFD Features

The F800 series is a VFD range which has been optimized for maximum energy savings with pump and fan control. The F800 is equally at home in an industrial environment or in the residential / commercial sector as part of an integrated HVAC solution.


Mitsubishi F800 Series Inverter/VFD

The all new Mitsubishi F800 Series VFD is designed for unparalleled drive precision, speed control, powerful startup, and versatility. Mitsubishi Electric focused its massive technological capabilities to develop a new generation of technologies far beyond your wildest expectations. Experience the remarkable F800.

Key Features

  • IP21 and IP55 enclosure options available
  • Built in RS-485 communication, most major communications protocols are supported
  • 24VDC control circuit power supply
  • Partitioned inverter/converter design for optimal solutions
  • Real sensorless vector control ensures faster response
  • Advanced magnetic flux vector control or V/F control
  • Optimum excitation control improves motor efficiency
  • IPM motors reduce energy consumption
