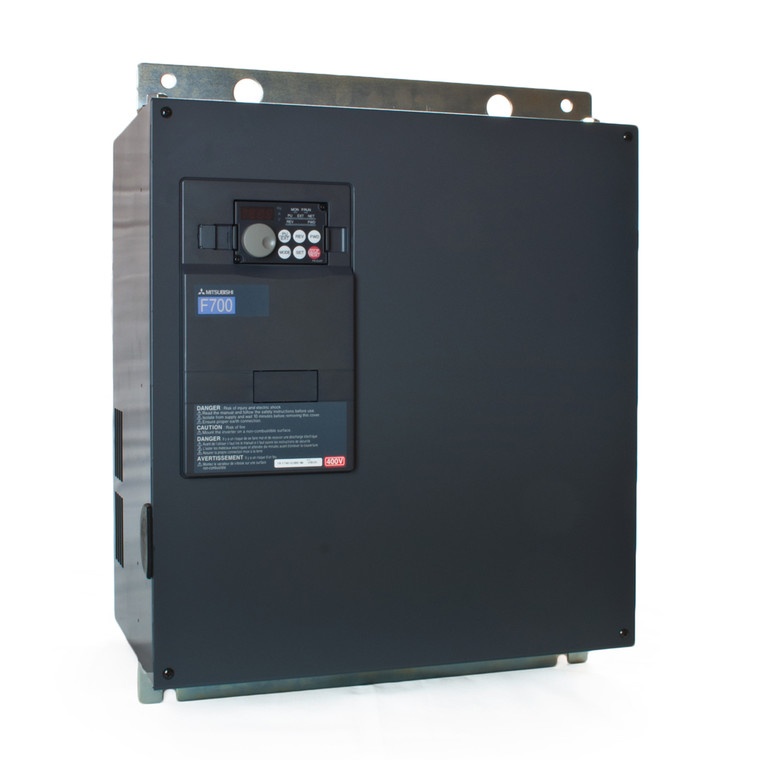

60HP 460V Mitsubishi VFD, Inverter, AC Drive FR-F740-00930-NA (FR-F740-00930-NA)

Brand:
MITSUBISHI
Model:
FR-F740-00930-NA
Condition:
New Surplus
0 Customer Reviews
Out Of Stock
Online Price: $6,728.99
Adding to cart… The item has been added
  • NEMA 1 UL Type 1 Enclosure Designs: Drive can be mounted as a stand-alone unit where required. (Plenum rated)
  • Built-in BACnet MS/TP
  • Built-in PLC; programs using GX Developer
  • Two I/O cards can be installed simultaneously
  • Remote I/O capability: All the drive I/O can be read or controlled over a network
  • Includes Removable FR-DU07 control unit with a digital dial that can be used as a speed potentiometer
  • Optional FR-PU07-01 keypad can be mounted remotely, display HAND/AUTO, and display the value of three monitors
  • Optimum Excitation Control for increased energy savings when motor is not loaded
  • 3 user programmable skip frequencies
  • Windmill start: Catch a reverse spinning load
  • Pre-charge mode
  • PID sleep mode
  • Second PID function
  • Regeneration avoidance
  • Standard RS-485 communications
  • Mitsubishi or Modbus RTU protocol
  • Built-in EMC filter: Conforms to EN61800-3 2nd environmental
  • UL Listed for single phase input

Technical Specifications

Model:
FR-F740-00930-NA
Brand:
MITSUBISHI
Product Condition:
New Surplus
Warranty:
1 Year
Horsepower Rating:
60 HP
HP Rating @ 110% OL:
60 HP
HP Rating @ 120% OL:
60 HP
Rated Amps:
85 A
Amp Rating @ 110% OL:
93 A
Amp Rating @ 120% OL:
85 A
Rated Voltage:
460 V
Output Voltage:
460 V
Output Amperage Rating:
93 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
IP 00
Series:
F700
Rated Amps:
93 A
Height:
21.70 in
Width:
17.10 in
Depth:
9.80 in

Product Information

MITSUBISHI F700 Series

F700
