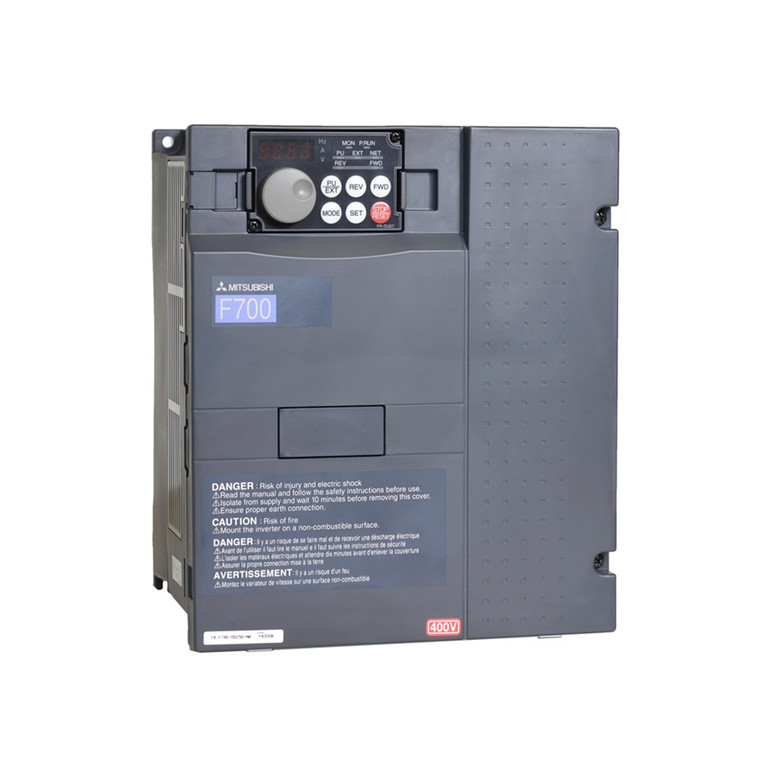

50HP & 60HP 460V Mitsubishi VFD, Inverter, AC Drive FR-F740-00770-NA

Brand: MITSUBISHI
Model: FR-F740-00770-NA
Condition: New Surplus
Rating:
0% of 100

In stock
List Price $5,870.00 Online Price $4,451.25

Highlights

  • NEMA 1 UL Type 1 Enclosure Designs: Drive can be mounted as a stand-alone unit where required. (Plenum rated)
  • Built-in BACnet MS/TP
  • Built-in PLC; programs using GX Developer
  • Two I/O cards can be installed simultaneously
  • Remote I/O capability: All the drive I/O can be read or controlled over a network
  • Includes Removable FR-DU07 control unit with a digital dial that can be used as a speed potentiometer
  • Optional FR-PU07-01 keypad can be mounted remotely, display HAND/AUTO, and display the value of three monitors
  • Optimum Excitation Control for increased energy savings when motor is not loaded
  • 3 user programmable skip frequencies
  • Windmill start: Catch a reverse spinning load
  • Pre-charge mode
  • PID sleep mode
  • Second PID function
  • Regeneration avoidance
  • Standard RS-485 communications
  • Mitsubishi or Modbus RTU protocol
  • Built-in EMC filter: Conforms to EN61800-3 2nd environmental
  • UL Listed for single phase input
Compare with similar items

Technical Specifications
Phase Three Phase
Phase Rating 3 Phase Input - 3 Phase Output
Series F700
Enclosure Rating IP 00
Brand MITSUBISHI
Horsepower Rating 50 HP
Rated Voltage 460 V
Product Condition New Surplus
Output Voltage 460 V
Output Amperage Rating 77 A
Rated Amps 70 A
HP Rating @ 110% OL 50 HP
HP Rating @ 120% OL 50 HP
Amp Rating @ 110% OL 77 A
Amp Rating @ 120% OL 70 A
Model FR-F740-00770-NA
Height 21.7 in
Width 12.8 in
Depth 7.7 in
Warranty 1 Year
Product Information

MITSUBISHI F700 Series

F700

Highlights

  • NEMA 1 UL Type 1 Enclosure Designs: Drive can be mounted as a stand-alone unit where required. (Plenum rated)
  • Built-in BACnet MS/TP
  • Built-in PLC; programs using GX Developer
  • Two I/O cards can be installed simultaneously
  • Remote I/O capability: All the drive I/O can be read or controlled over a network
  • Includes Removable FR-DU07 control unit with a digital dial that can be used as a speed potentiometer
  • Optional FR-PU07-01 keypad can be mounted remotely, display HAND/AUTO, and display the value of three monitors
  • Optimum Excitation Control for increased energy savings when motor is not loaded
  • 3 user programmable skip frequencies
  • Windmill start: Catch a reverse spinning load
  • Pre-charge mode
  • PID sleep mode
  • Second PID function
  • Regeneration avoidance
  • Standard RS-485 communications
  • Mitsubishi or Modbus RTU protocol
  • Built-in EMC filter: Conforms to EN61800-3 2nd environmental
  • UL Listed for single phase input
