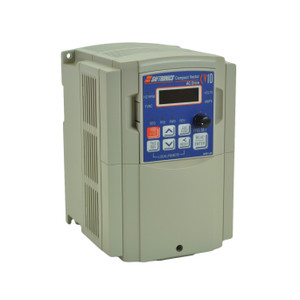

10HP 460V Saftronics VFD, Inverter, AC Drive CV104010-9

Brand: Saftronics
Model: CV1040109
Condition: New Surplus
Rating:
0% of 100

In stock
$599.99
Compare with similar items

Technical Specifications
Constant Torque / Variable Torque Variable Torque
Phase Rating 3 Phase Input - 3 Phase Output
Series CV10
Phase Three Phase
Rated Amps 17.5 A
Enclosure Rating IP 20
Brand Saftronics
Horsepower Rating 10 HP
Rated Voltage 460 V
Product Condition New Surplus
Output Voltage 460 V
Output Amperage Rating 17.5 A
HP Rating @ 150% OL 10 HP
Amp Rating @ 150% OL 17.5 A
Model CV104010-9
Height 10.24 in
Width 7.32 in
Depth 7.68 in
Product Information

Saftronics CV10 Series

The CV10 offers both open sensorless vector control and V/Hz control modes, built-in PLC Smart Relay, motor auto tuning for optimal performance, a user friendly LED keypad with speed potentiometer and built-in Modbus RTU and ASCII.

Standard Features

  • 650Hz Maximum Output Frequency
  • Heavy Duty Rated
  • Overload Protection of 150% for up to 1 minute.
  • 2 to 16Khz Carrier Frequency
  • Built-in Dynamic Braking Transistor
  • Sink or Source Digital Inputs
  • DC Injection Braking
  • 2 or 3 Wire Control
  • 18 Pre-defined V/Hz Patterns
  • Speed Search
  • Auto Torque Boost
  • Stall Prevention
  • Power Loss Ride Through
  • Local/Remote Control
