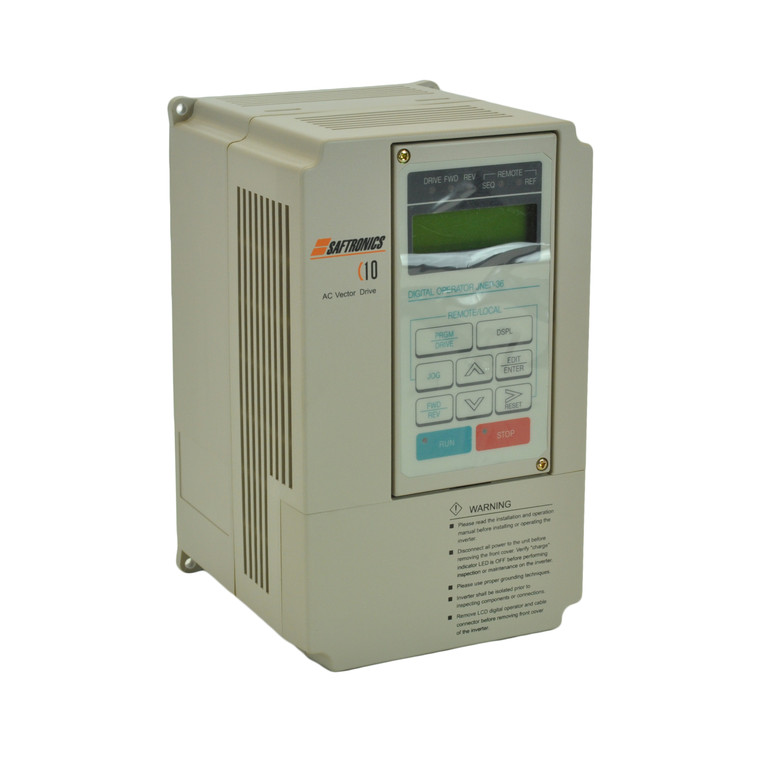

7.5HP & 10HP 460V Saftronics VFD, Inverter, AC Drive C104007-1
Brand: Saftronics
Model: C104007-1
Condition: New Surplus
Compare with similar items
This Item
|
|
|
|
|
|
|
| 7.5HP & 10HP 460V Saftronics VFD, Inverter, AC Drive C104007-1 | 7.5HP & 10HP 460V Galt Electric G500 VFD, Inverter, AC Drive G540-00185UL-03 | 7.5HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00140UL-02 | 5HP & 7.5HP 460V Galt Electric G300 VFD, Inverter, AC Drive G340-00140UL-01 | 7.5HP & 10HP 460V Galt Electric G300 VFD, Inverter, AC Drive G340-00185UL-01 | 7.5HP 460V Delta CP2000 VFD, Inverter, AC Drive VFD055CP4EB-21 | |
| Ratings | ||||||
| Price |
$599.99
|
$715.55
|
$378.00
|
$426.00
|
$585.00
|
List Price
$1,063.00
Online Price
$531.50
|
| Free Shipping |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Series |
C10
|
G500
|
G200
|
G300
|
G300
|
CP2000
|
| Rated Amps |
12 A
|
14 A, 18.5 A
|
19.5 A
|
9.5 A, 14 A
|
14 A, 18.5 A
|
13 A
|
| Enclosure Rating |
UL Type 1
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
| Frame Size |
|
|
|
|
|
A
|
| Brand |
Saftronics
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
Delta
|
| Horsepower Rating |
7.5 HP, 10 HP
|
7.5 HP, 10 HP
|
7.5 HP
|
5 HP, 7.5 HP
|
7.5 HP, 10 HP
|
7.5 HP
|
| Rated Voltage |
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
| Model |
C104007-1
|
G540-00185UL-03
|
G24000140UL02
|
G340-00140UL-01
|
G340-00185UL-01
|
VFD055CP4EB-21
|
Technical Specifications
| Phase Rating | 3 Phase Input - 3 Phase Output |
|---|---|
| Constant Torque / Variable Torque | Variable Torque |
| Series | C10 |
| Phase | Three Phase |
| Rated Amps | 12 A |
| Enclosure Rating | UL Type 1 |
| Brand | Saftronics |
| Horsepower Rating | 7.5 HP, 10 HP |
| Rated Voltage | 460 V |
| Product Condition | New Surplus |
| Output Voltage | 460 V |
| Output Amperage Rating | 12 A |
| HP Rating @ 110% OL | 10 HP |
| HP Rating @ 150% OL | 7.5 HP |
| Amp Rating @ 110% OL | 15.4 A |
| Amp Rating @ 150% OL | 12 A |
| Model | C104007-1 |
| Height | 8.31 in |
| Width | 11.81 in |
| Depth | 8.46 in |
Product Information
Saftronics C10 Series
When versatility is needed across a range of customized OEM applications, the C10 series can be modified and personalized to your unique application using its Onboard Application Software. The C10 series drive has a strong set of standard attributes that are ideal for industrial situations.
Standard Features
- 400Hz maximum output frequency
- 0.5% Speed control accuracy
- Overload protection of 150% for up to 1 minute
- 3 Programmable analog inputs
- 2 Programmable analog outputs
- 8 Digital inputs (sink or source)
- 2 or 3 wire control
- 3 digital outputs
- 16 preset speeds
- Speed search
- RS-485 Modbus RTU
- DC injection baking
- Over/under torque detection
- Power loss ride-thru
- 33 monitoring functions
- Fault history (up to 4)
- Onboard application software
- Sensorless wector, V/Hz, and V/Hz with PG feedback control modes
- Digital Pulse Train Input (0 to 32 KHz)
- Motor auto tuning for optimum motor performance
- PID Mode with sleep function
- Graphical LCD operator interface with copy function
- Built-in braking transistor
