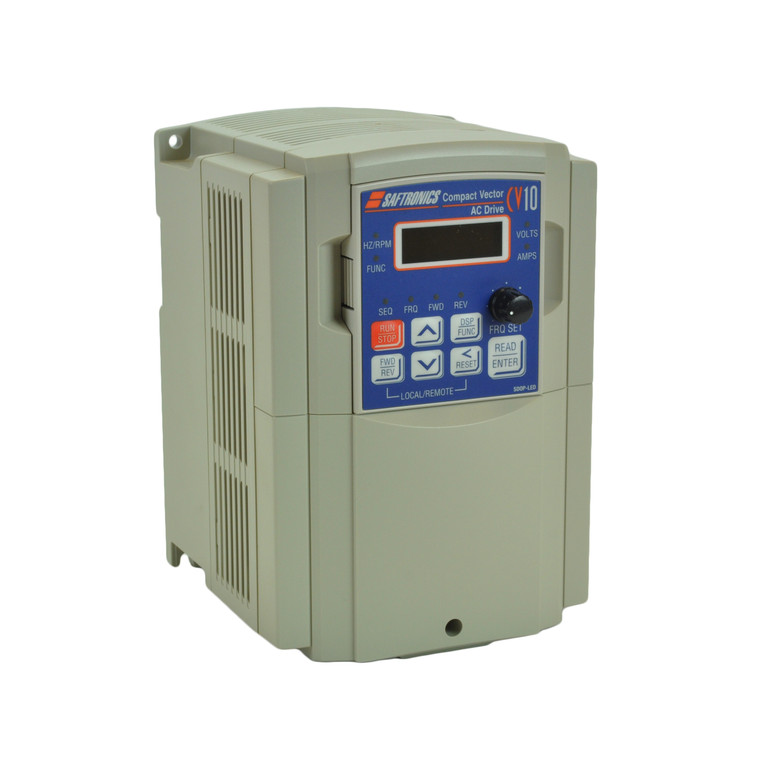

10HP 230V Saftronics VFD, Inverter, AC Drive CV102010-9
Brand: Saftronics
Model: CV102010-9
Condition: New Surplus
Rating:
0% of 100
Compare with similar items
This Item
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
10HP 230V Saftronics VFD, Inverter, AC Drive CV102010-9 | 10HP 230V Galt Electric G500 VFD, Inverter, AC Drive G520-00300UL-01 | 10HP 230V Saftronics VFD, Inverter, AC Drive C102010-1 | 7.5HP & 10HP 230V Saftronics VFD, Inverter, AC Drive C102007-1 | 10HP 230V Mitsubishi F800E VFD, Inverter, AC Drive FR-F820-00340-E3N6 | 10HP 230V Mitsubishi VFD, Inverter, AC Drive FR-D720-318-NA | |
|
|
|
|
|
|
|
Ratings |
Rating:
0%
|
Rating:
0%
|
Rating:
0%
|
Rating:
0%
|
Rating:
0%
|
Rating:
0%
|
Price |
$512.99
|
$707.00
|
$599.99
|
$499.99
|
List Price
$1,680.00
Online Price
$1,260.00
|
List Price
$965.00
Online Price
$723.75
|
Free Shipping |
No |
Yes |
No |
No |
Yes |
Yes |
Series |
CV10
|
G500
|
C10
|
C10
|
F800E
|
D700
|
Rated Amps |
35 A
|
30 A
|
32 A
|
24 A
|
31 A, 34 A
|
31.8 A
|
Enclosure Rating |
IP 20
|
IP 20
|
UL Type 1
|
UL Type 1
|
UL Type 1
|
IP 20
|
Frame Size |
|
|
|
|
D
|
|
Brand |
Saftronics
|
GALT ELECTRIC
|
Saftronics
|
Saftronics
|
MITSUBISHI
|
MITSUBISHI
|
Horsepower Rating |
10 HP
|
10 HP
|
10 HP
|
7.5 HP, 10 HP
|
10 HP
|
10 HP
|
Rated Voltage |
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
Model |
CV102010-9
|
G520-00300UL-01
|
C102010-1
|
C102007-1
|
FR-F820-00340-E3N6
|
FR-D720-318-NA
|
Technical Specifications
Phase Rating | 3 Phase Input - 3 Phase Output |
---|---|
Constant Torque / Variable Torque | Variable Torque |
Series | CV10 |
Phase | Three Phase |
Rated Amps | 35 A |
Enclosure Rating | IP 20 |
Brand | Saftronics |
Horsepower Rating | 10 HP |
Rated Voltage | 230 V |
Product Condition | New Surplus |
Output Voltage | 230 V |
Output Amperage Rating | 35 A |
HP Rating @ 150% OL | 10 HP |
Amp Rating @ 150% OL | 35 A |
Model | CV102010-9 |
Height | 10.24 in |
Width | 7.32 in |
Depth | 7.68 in |
Product Information
Saftronics CV10 Series
The CV10 offers both open sensorless vector control and V/Hz control modes, built-in PLC Smart Relay, motor auto tuning for optimal performance, a user friendly LED keypad with speed potentiometer and built-in Modbus RTU and ASCII.
Standard Features
- 650Hz Maximum Output Frequency
- Heavy Duty Rated
- Overload Protection of 150% for up to 1 minute.
- 2 to 16Khz Carrier Frequency
- Built-in Dynamic Braking Transistor
- Sink or Source Digital Inputs
- DC Injection Braking
- 2 or 3 Wire Control
- 18 Pre-defined V/Hz Patterns
- Speed Search
- Auto Torque Boost
- Stall Prevention
- Power Loss Ride Through
- Local/Remote Control
