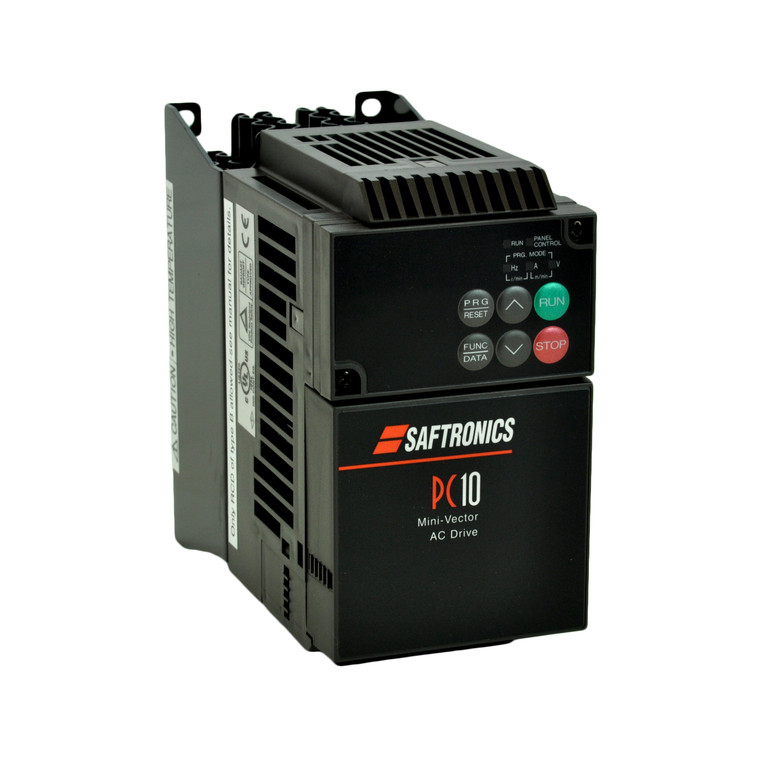

10HP 460V Saftronics VFD, Inverter, AC Drive PC104010-9 (PC104010-9-R3F8D)

10HP 460V Saftronics VFD, Inverter, AC Drive PC104010-9 (PC104010-9-R3F8D)

Brand:
Saftronics
Model:
PC104010-9-R3F8D
Condition:
Seller refurbished
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Online Price: $410.99
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
PC104010-9
Brand:
Saftronics
Product Condition:
Seller refurbished
Horsepower Rating:
10 HP
HP Rating @ 150% OL:
10 HP
Rated Amps:
16 A
Amp Rating @ 150% OL:
16 A
Rated Voltage:
460 V
Output Voltage:
460 V
Output Amperage Rating:
16 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Three Phase
Enclosure Rating:
IP 20
Series:
PC10
Height:
8.66 in
Width:
7.09 in
Depth:
6.22 in

Product Information

Saftronics PC10 Series

Mini Vector AC Drive

Standard Features

  • Both open loop (sensorless) vector and Volts / Hertz control
  • Motor auto tuning including full dynamic tuning (spinning motor), static tuning (loaded motor, not spinning), and on-line tuning (continuous tuning while running)
  • User-friendly LED keypad including including operation and maintenance status monitor
  • Uniform programming parameters with GP10 and VG10
  • Heavy duty rated with 200% starting torque and overload protection of 150% for up to 1 minute
  • Soft-switching technology to eliminate output filters
  • Serial communications (Profibus-S, DeviceNet, Modbus Plus, Interbus-S and CAN Open)
  • +/-10Vdc or 4-20mA reference inputs
  • Built-in dynamic braking
  • Frequency adjustable to 400Hz
  • Built-in PID control
  • IP20 protected chassis, Nema 1 kit available
  • Saflink compatible
