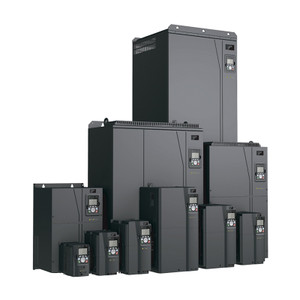

150HP, 480V, Galt Electric G500 VFD (G540-01800UL-03)

Name: 150HP, 480V, Galt Electric G500 VFD (G540-01800UL-03)
Brand: GALT ELECTRIC
SKU: G540-01800UL-03
Price: 6647.36 USD
Availability: InStock

Brand:

GALT ELECTRIC

Model:

G540-01800UL-03

Condition:

New

0 Customer Reviews

G500ETH: Optional

None
Galt G500 Series Ethernet Interface Card

G500XLT: Optional

None
Galt G500 Series RS-485 Interface Card

G5N1ADP-F6(B): Optional

None
G500 N1 Conduit Adapter Frame Size 6B

Add Technical Support: Optional

None
30-min Tech Support
60-min Tech Support

In Stock

List Price: $9,848.00

Online Price: $6,647.36

Adding to cart… The item has been added

Galt G500 variable frequency drives are general-purpose industrial VFDs meant for use in pumps, fans, compressors, and many other applications. Sized for variable torque 120% overload, they can be derated for constant torque 150% or 200% overloads as well as higher elevations or ambient temperatures.

G540-01800UL-03

150 Horsepower
180 Amps
480 Volt
IP20
UL rated
Three phase input and output
Modbus communication protocol standard
External keypad for easy programming
3-year manufacturer warranty

Free shipping over $50*

Technical Specifications

Product Information

GALT ELECTRIC G500 Series

Galt Electric's mission is to make technology approachable. The G500 series VFD is the embodiment of this mission. With the most common capabilities that you'll need in an inverter and the important upgrades and capabilities, the G500 drive can handle any application, including pumps, fans, conveyors, crushers, and compressors.

The G500 inverter is compatible with many common communication protocols and has options like additional communication cards and external keypads. Available in 240V, 480V, and 575V and ranging in size from 1 to 800 horsepower, G500 adjustable speed drives are easy to install and use.

The Galt G500 series is the VFD that will help make your system to be reliable, usable, and efficient.

Standard Features

External detachable LED keypad used to change input, output, and other settings easily
High performance open or closed-loop sensorless vector control
Compatible with option cards and upgraded LCD keypad
Integrated PID controller
Capable of controlling asynchronous and synchronous permanent magnet motors
Latest firmware available with the -03 version of the G500 series
DC injection, dynamic, flux, and short-circuit braking compatible
Built-in C3 EMC filter to prevent electromagnetic interference
1:200 speed ration for motor driving performance
Accurate static and rotating parametric auto tuning of the motor
8 digital inputs, 2 open-collector outputs; 2 relay outputs, 2 form C relay outputs; 3 analog inputs, 2 analog outputs
QR code display for additional parameter information and fault troubleshooting
Option cards allow communication protocols including EtherNet/IP (DLR), BACnet/IP, PROFINET IO (MRP), IEC 61850, CC-Link IE Field Basic, SLMP, MELSEC MC, and AB CSP
