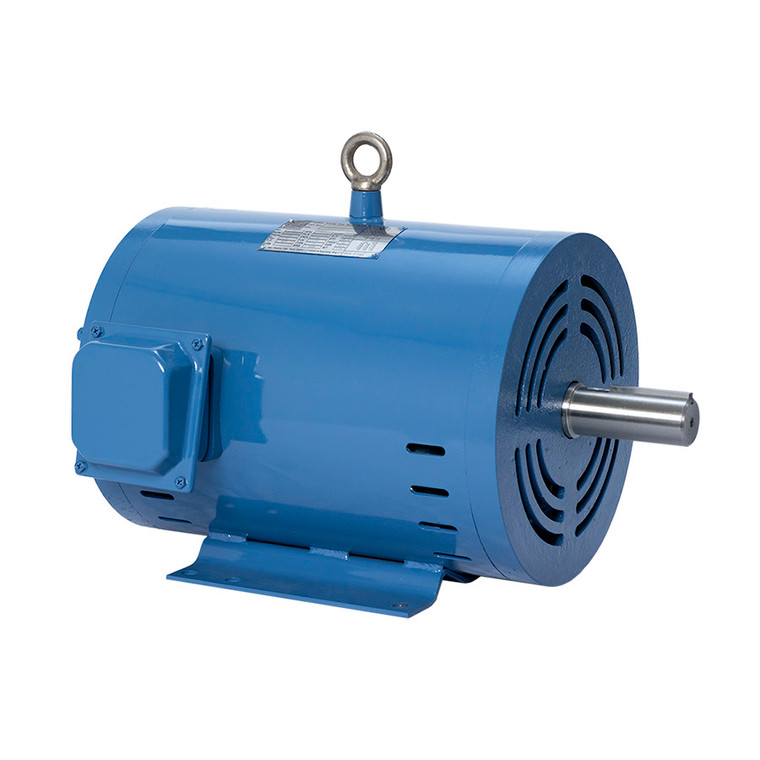

Technical Specifications
Model:
GDP00306-213T-K
Brand:
GALT ELECTRIC
Product Condition:
New
Warranty:
3 Years
Horsepower Rating:
3 HP
Synchronous RPM:
1200 RPM
Frame Size:
213T
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
13.6
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Power Factor:
0.75
Efficiency:
88.5%
Construction:
Rolled Steel
C Dimension:
16.54
Rated Input Frequency:
60 Hz
Rated Amps:
4.3 A
Phase:
Three Phase
Series:
GDP
