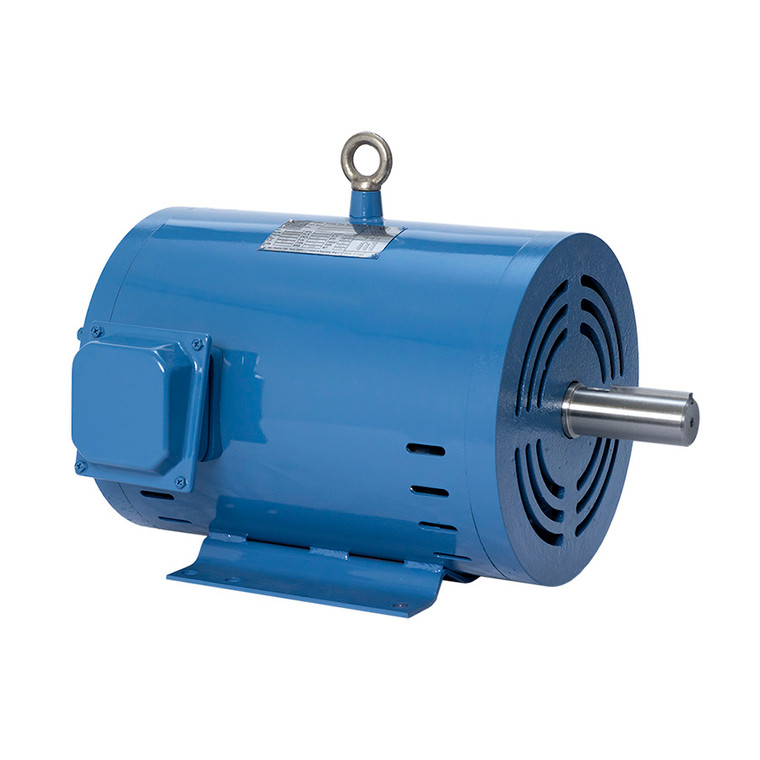

Galt Electric ODP Motor GDP00304-182T-K, 3HP, 1800RPM, 3-Phase, 208, 230, 460V, 60Hz, 182T (GDP0030-4-182T-K)

Brand:
GALT ELECTRIC
Model:
GDP0030-4-182T-K
Condition:
New
0 Customer Reviews
In Stock
List Price:  $792.92
Online Price: $396.46
Adding to cart… The item has been added
  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings up to 215T size
  • Re-greaseable bearings from 254T and above
  • Quality castings
  • 1.25 Service factor (Up to 100 HP)
  • 1.15 Service factor (125 HP & above)
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90? increment rotatable)
  • Lead support gasketing
  • C-faces available
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • AISI 4140 shaft material
  • Shaft grounding protection available
  • Standard F1 assembly (F2 available cast iron only)
  • Easy to read stainless steel nameplate

Manufacturer's Website

https://www.galtelectric.com


Technical Specifications

Model:
GDP00304-182T-K
Brand:
GALT ELECTRIC
Product Condition:
New
Warranty:
3 Years
Horsepower Rating:
3 HP
Synchronous RPM:
1800 RPM
Frame Size:
182T
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
9
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Power Factor:
0.76
Efficiency:
89.5%
Construction:
Rolled Steel
C Dimension:
14.1
Rated Input Frequency:
60 Hz
Rated Amps:
4.1 A
Phase:
Three Phase
Series:
GDP

Product Information

GALT ELECTRIC GDP Series

MOTOR, 3HP, 1800RPM, ODP, 182T
