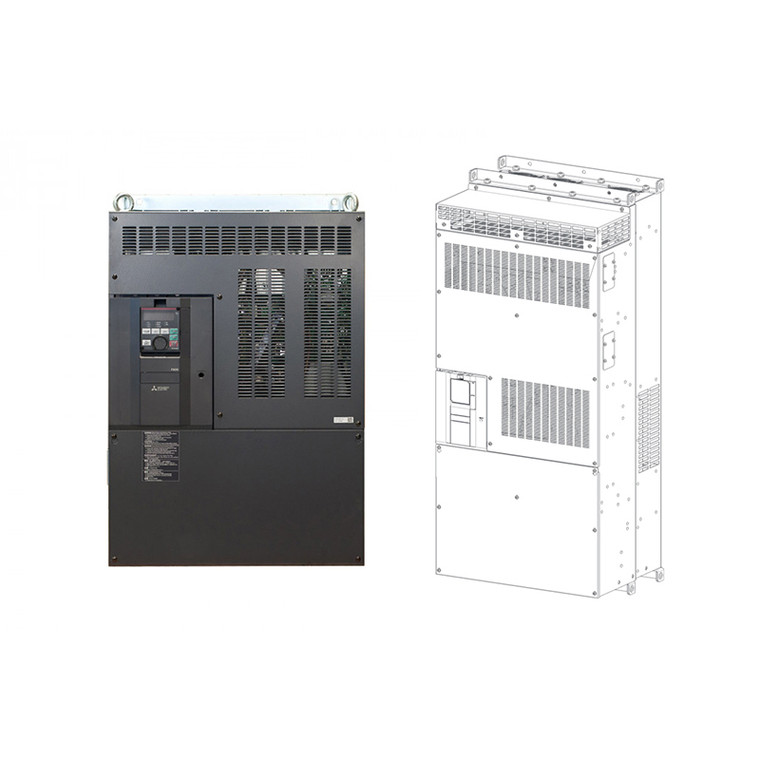

550HP 460V Mitsubishi F800E VFD, Inverter, AC Drive FR-F842-07700-E3U6 (FR-F842-07700-E3U6)

550HP 460V Mitsubishi F800E VFD, Inverter, AC Drive FR-F842-07700-E3U6 (FR-F842-07700-E3U6)

Brand:
MITSUBISHI
Model:
FR-F842-07700-E3U6
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
List Price:  $21,953.00
Online Price: $17,562.40
Adding to cart… The item has been added
  • Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations
  • Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
  • Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
  • Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
  • CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
  • Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
  • Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
  • Reduced Cost - Standard Ethernet connectivity without add-on modules.

    • Notes
    * Drive Sizes up to 40HP
    ** Requires the use of the FR-LU08 keypad

    Write a Review

    Technical Specifications

    Model:
    FR-F842-07700-E3U6
    Brand:
    MITSUBISHI
    Product Condition:
    New
    Warranty:
    1 Year
    Horsepower Rating:
    550 HP
    HP Rating @ 110% OL:
    550 HP
    Rated Amps:
    770 A
    Amp Rating @ 110% OL:
    770 A
    Rated Voltage:
    460 V
    Rated Input Frequency:
    60 Hz
    Output Voltage:
    460 V
    Output Amperage Rating:
    770 A
    Phase Rating:
    3 Phase Input - 3 Phase Output
    Constant Torque / Variable Torque:
    Variable Torque
    Phase:
    Three Phase
    Enclosure Rating:
    IP 00
    Frame Size:
    P
    Series:
    F800E
    Height:
    52.40 in
    Width:
    21.30 in
    Depth:
    17.30 in

    Product Information

    MITSUBISHI F800E Series

    VT INVERTER 650HP 480V ETHERNET
