Technical Specifications
Model:
FR-F842-07700-E3U6+FR-CC2-H355K-60
Brand:
MITSUBISHI
Product Condition:
New
Warranty:
1 Year
HP Rating @ 120% OL:
550 HP
Amp Rating @ 120% OL:
683 A
Output Voltage:
460 V
Output Amperage Rating:
683 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Three Phase
Frame Size:
P+R
Horsepower Rating:
550 HP
Rated Amps:
683 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Enclosure Rating:
IP 00
Series:
F800E
Product Information

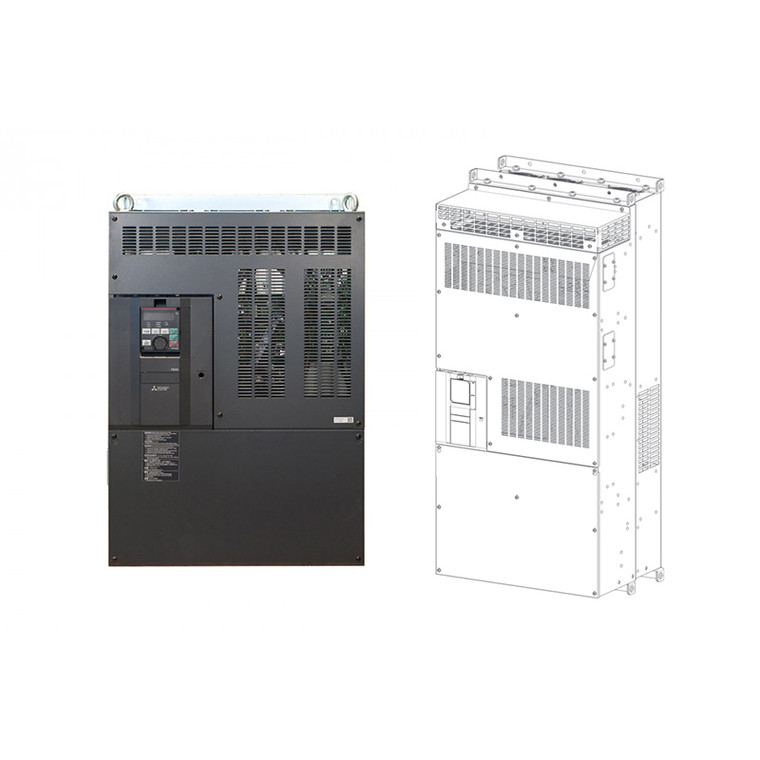

MITSUBISHI F800E Series
***This unit must be paired with a FR-CC2 module unit to function!
Dimensions
P frame: (H) 52.4" (W) 21.3" (D) 17.3"
Q frame: (H) 62.2" (W) 26.8" (D) 17.3"
R frame: (H) 52.4" (W) 23.6" (D) 17.3"
S frame: (H) 62.2" (W) 23.6" (D) 17.3"
**FR-F800-E Series Drives Have Removed RS485 Terminals**
FR-F800-E Series with Built-in Ethernet Communication
The FR-F800-E is a pump and fan control VFD that combines performance, accuracy and reliability with embedded Ethernet based communications to enhance overall system flexibility. With 100Mbps Ethernet TCP/IP and BACnet/IP connectivity as the standard, the FR-F800-E provides an increased ability for remote system monitoring, parameter adjustments and easy integration into existing network environments.
