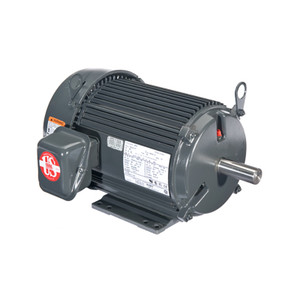

US Motors (Nidec), AC Motor, U34S2AC, 0.75 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 56C (U34S2AC)

US Motors (Nidec), AC Motor, U34S2AC, 0.75 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 56C (U34S2AC)

Brand:
US Motors (Nidec)
Model:
U34S2AC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

3/4 HP, 1750 RPM, U34S2AC, 208-230/460 V, 60 HZ, 56C
Download Brochure
Download Manual

Steel Edge

APPLICATIONS:

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

FEATURES:

  • Rolled Steel Frame
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • "CE" Mark on Nameplate (140 Frame & Larger)
  • Shaft Slinger On Pulley End
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Sine Wave Power
  • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
