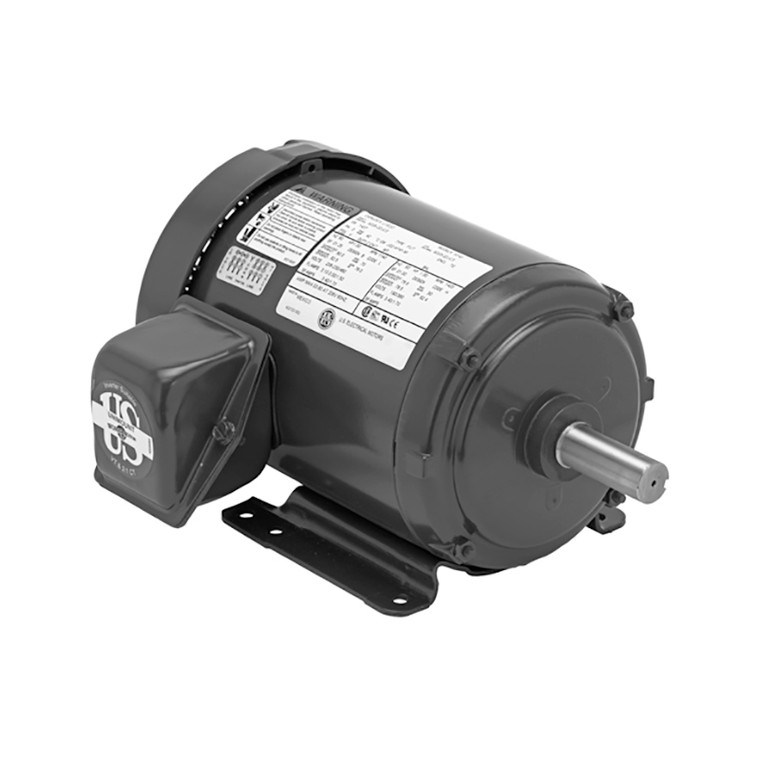

US Motors (Nidec), AC Motor, U34P3GH, HP, RPM, , , Hz (U34P3GH)

US Motors (Nidec), AC Motor, U34P3GH, HP, RPM, , , Hz (U34P3GH)

Brand:
US Motors (Nidec)
Model:
U34P3GH
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
U34P3GH
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Motor Design Class:
B
Full Load Torque:
3.4
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
82.5%
Construction:
Aluminum
Bearing Type:
6203-2Z-J/C3
Motor Full Load Amps:
1.2 A

Product Information

US Motors (Nidec) Series

U34P3GH
Download Brochure
Download Manual

Steel Edge

APPLICATIONS:

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

FEATURES:

  • Rolled Steel Frame
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • "CE" Mark on Nameplate (140 Frame & Larger)
  • Shaft Slinger On Pulley End
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Sine Wave Power
  • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
