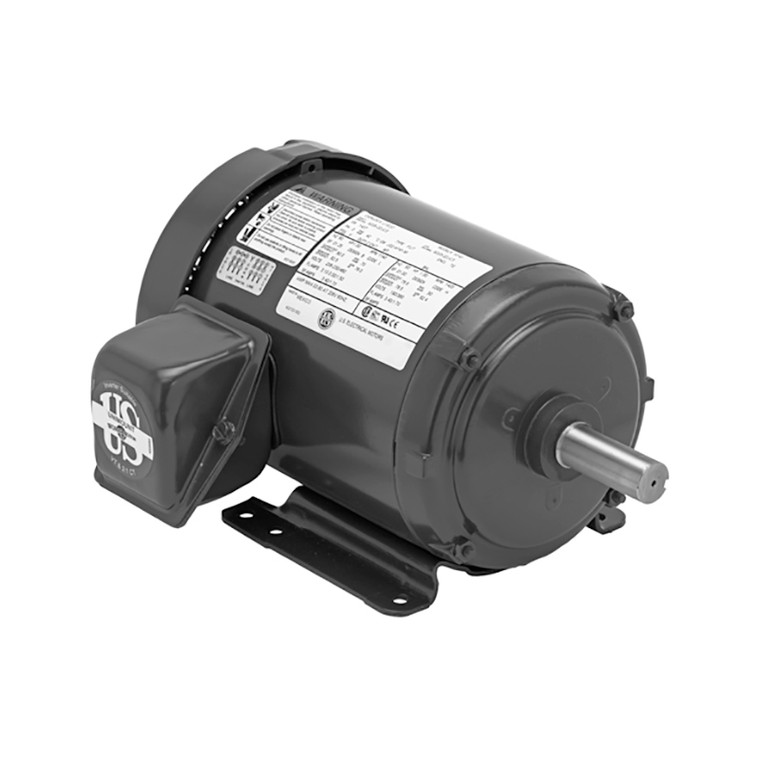

US Motors (Nidec), AC Motor, T14S2A, 0.25 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 56 (T14S2A)

US Motors (Nidec), AC Motor, T14S2A, 0.25 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 56 (T14S2A)

Brand:
US Motors (Nidec)
Model:
T14S2A
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
T14S2A
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.25 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1725 RPM
Frame Size:
56
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
B
Duty Cycle:
Continuous
Efficiency:
70%
C Dimension:
10.8
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
1.1-1.1/.5 A

Product Information

US Motors (Nidec) Series

1/4 HP, 1725 RPM, T14S2A, 208-230/460 V, 60 HZ, 56
Download Brochure
Download Manual

Steel Edge

APPLICATIONS:

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

FEATURES:

  • Rolled Steel Frame
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • "CE" Mark on Nameplate (140 Frame & Larger)
  • Shaft Slinger On Pulley End
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Sine Wave Power
  • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
