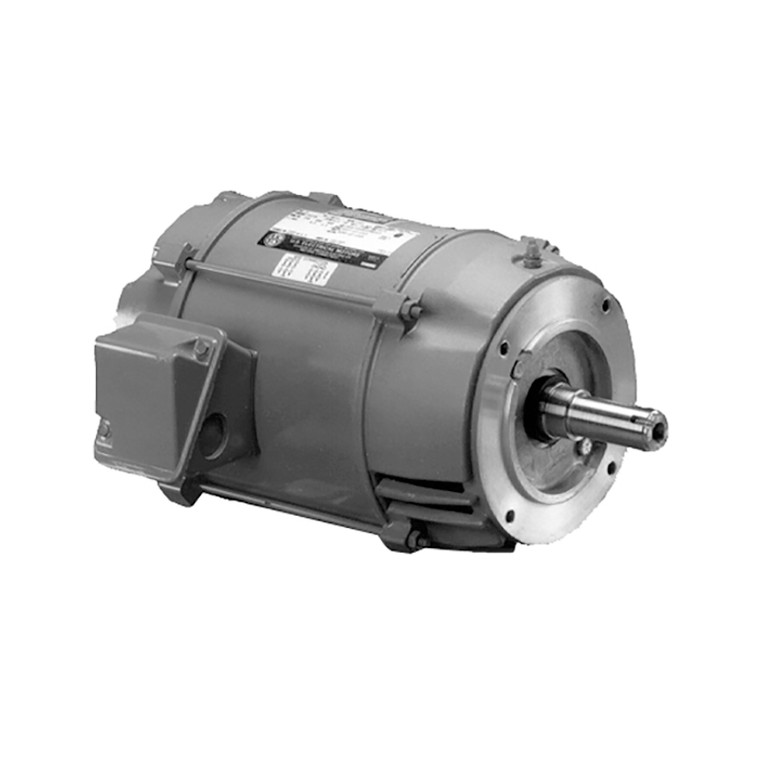

US Motors (Nidec), AC Motor, D14P2ACR, 0.25 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 56C (D14P2ACR)

Brand:
US Motors (Nidec)
Model:
D14P2ACR
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
D14P2ACR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.25 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1725 RPM
Frame Size:
56C
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.35
Insulation Class:
B
Duty Cycle:
Continuous
Efficiency:
69.5%
C Dimension:
10.8
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
1.1-1.2/0.6 A

Product Information

US Motors (Nidec) Series

1/4 HP, 1725 RPM, D14P2ACR, 208-230/460 V, 60 HZ, 56C
