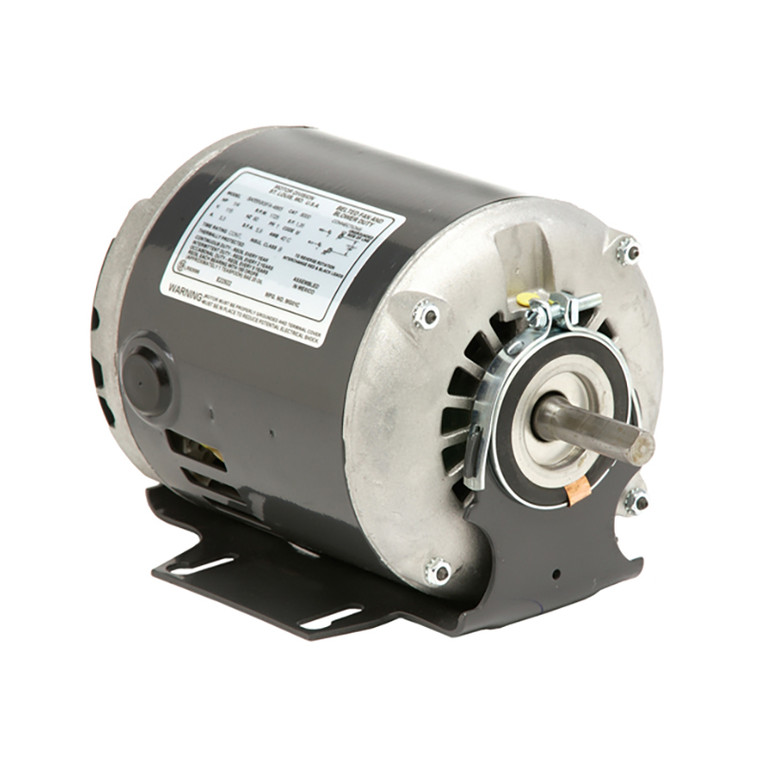

US Motors (Nidec), AC Motor, PD6006, 0.5 HP, 1800 RPM, Single Phase, 115/208-230 V, 60 , 50 Hz, 48Z (PD6006)

US Motors (Nidec), AC Motor, PD6006, 0.5 HP, 1800 RPM, Single Phase, 115/208-230 V, 60 , 50 Hz, 48Z (PD6006)

Brand:
US Motors (Nidec)
Model:
PD6006
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
S055REY8243012B
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
0.5 HP
Synchronous RPM:
1800 RPM
Frame Size:
48Z
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
N
Full Load Torque:
24.41
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.25
Insulation Class:
B
Duty Cycle:
Continuous
Efficiency:
65%
C Dimension:
10.6
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
8.6/4.2-4.3 A

Product Information

US Motors (Nidec) Series

1/2 HP, 1725 & 1425 RPM, PD6006, 115/208-230 V, 60 & 50 HZ, 48Z
