US Motors (Nidec) logo

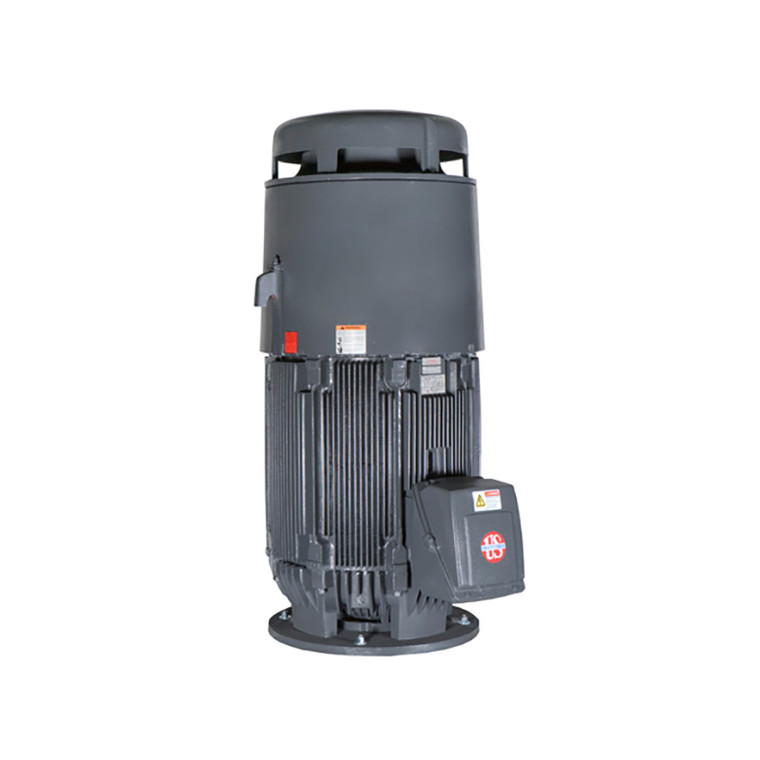

US Motors (Nidec), AC Motor, NT2P1BE, 2 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 145VP (NT2P1BE)

Brand:
US Motors (Nidec)
Model:
NT2P1BE
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
NT2P1BE
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
2 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3505 RPM
Frame Size:
145VP
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
3
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
85.5%
C Dimension:
16
Bearing Type:
6203-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
4.8/2.4 A

Product Information

US Motors (Nidec) Series

2 HP, 3505 RPM, NT2P1BE, 230/460 V, 60 HZ, 145VP
