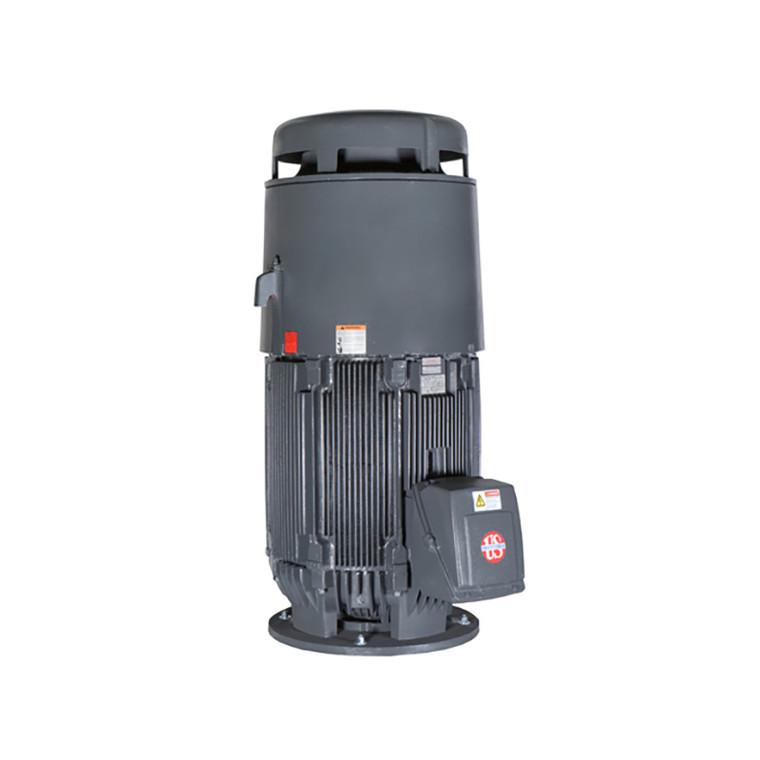

US Motors (Nidec), AC Motor, NT1P3BE, 1 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 145VP (NT1P3BE)

US Motors (Nidec), AC Motor, NT1P3BE, 1 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 145VP (NT1P3BE)

Brand:
US Motors (Nidec)
Model:
NT1P3BE
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
NT1P3BE
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
1 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1165 RPM
Frame Size:
145VP
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
4.5
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
82.5%
C Dimension:
16
Bearing Type:
6203-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
3.6/1.8 A

Product Information

US Motors (Nidec) Series

1 HP, 1165 RPM, NT1P3BE, 230/460 V, 60 HZ, 145VP
