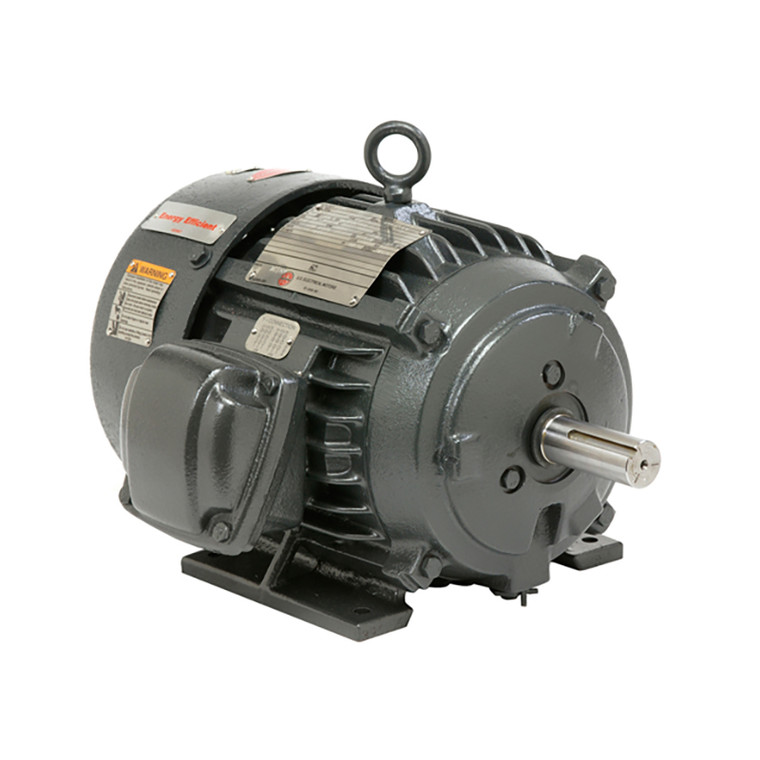

US Motors (Nidec), AC Motor, YC30P1BS, 30 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 286TS (YC30P1BS)

US Motors (Nidec), AC Motor, YC30P1BS, 30 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 286TS (YC30P1BS)

Brand:
US Motors (Nidec)
Model:
YC30P1BS
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
YC30P1BS
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Explosion Proof
Horsepower Rating:
30 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3560 RPM
Frame Size:
286TS
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
44.3
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
C Dimension:
26
Bearing Type:
6210-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
69/34 A

Product Information

US Motors (Nidec) Series

30 HP, 3560 RPM, YC30P1BS, 230/460 V, 60 HZ, 286TS
Download Brochure
Download Manual

Corro-Duty

APPLICATIONS:

For pulp & paper, mill & chemical and any other severe duty environments found in the process industries

FEATURES:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • All Cast Iron Construction (Steel Frame & Fan Cover On 140 Frame)
  • Corrosion Resistant Mill & Chemical Duty Paint
  • Stainless Steel Nameplate (with "CE" Mark) & Zinc Plated Hardware
  • Shaft Slinger On Pulley End For IP54 Protection
  • Precision Balance (< 0.08 In/Sec Vibration)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 180 Frame & Up
  • Double Shielded Bearings 140-360, Open On 400-440
  • Oversized Conduit Box - 1 Size Larger Than NEMA®† Standard
  • Cast Iron Inner Bearing Caps (180 Frame & Larger)
  • Field Convertible To F2 Mounting 180 Frame & Larger
  • Condensation Drains With Threaded Brass Breather Plugs
