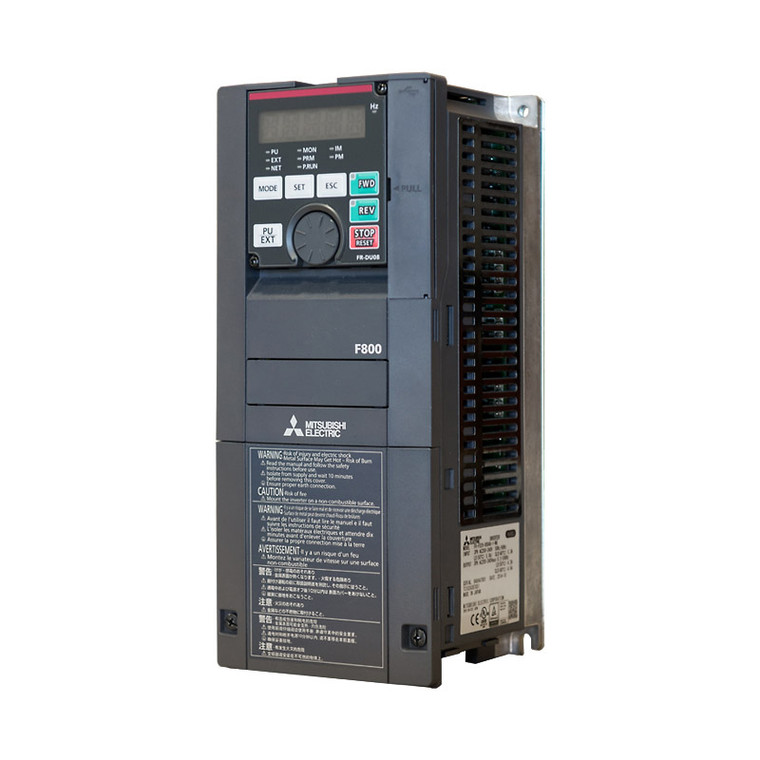

60HP 460V Mitsubishi F800E VFD, Inverter, AC Drive FR-F840-00930-E360 (FR-F840-00930-E360)

60HP 460V Mitsubishi F800E VFD, Inverter, AC Drive FR-F840-00930-E360 (FR-F840-00930-E360)

Brand:
MITSUBISHI
Model:
FR-F840-00930-E360
Condition:
New
0 Customer Reviews
Out Of Stock
Online Price: $7,644.00
Adding to cart… The item has been added
  • Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations
  • Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
  • Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
  • Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
  • CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
  • Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
  • Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
  • Reduced Cost - Standard Ethernet connectivity without add-on modules.
Write a Review

Technical Specifications

Model:
FR-F840-00930-E360
Brand:
MITSUBISHI
Product Condition:
New
Warranty:
1 Year
Horsepower Rating:
60 HP
HP Rating @ 110% OL:
60 HP
HP Rating @ 120% OL:
60 HP
Rated Amps:
85 A
Amp Rating @ 110% OL:
93 A
Amp Rating @ 120% OL:
85 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
93 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Three Phase
Enclosure Rating:
IP 00
Frame Size:
H
Communication Protocol:
Modbus TCP/IP
Communication Protocol:
CC-Link IE
Height:
21.67 in
Width:
17.13 in
Depth:
9.84 in

Product Information

MITSUBISHI F800E Series

VT INVERTER 60HP 480V ETHERNET

Highlights

  • Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations
  • Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
  • Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
  • Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
  • CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
  • Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
  • Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
  • Reduced Cost - Standard Ethernet connectivity without add-on modules.
Download Manual
