Technical Specifications
Model:
FR-F842-12120-3-60
Brand:
MITSUBISHI
Product Condition:
New
Horsepower Rating:
900 HP
HP Rating @ 110% OL:
900 HP
Rated Amps:
1212 A
Amp Rating @ 110% OL:
1212 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
1212 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Three Phase
Enclosure Rating:
IP 00
Frame Size:
Q
Height:
62.20 in
Width:
26.80 in
Depth:
17.30 in
Product Information

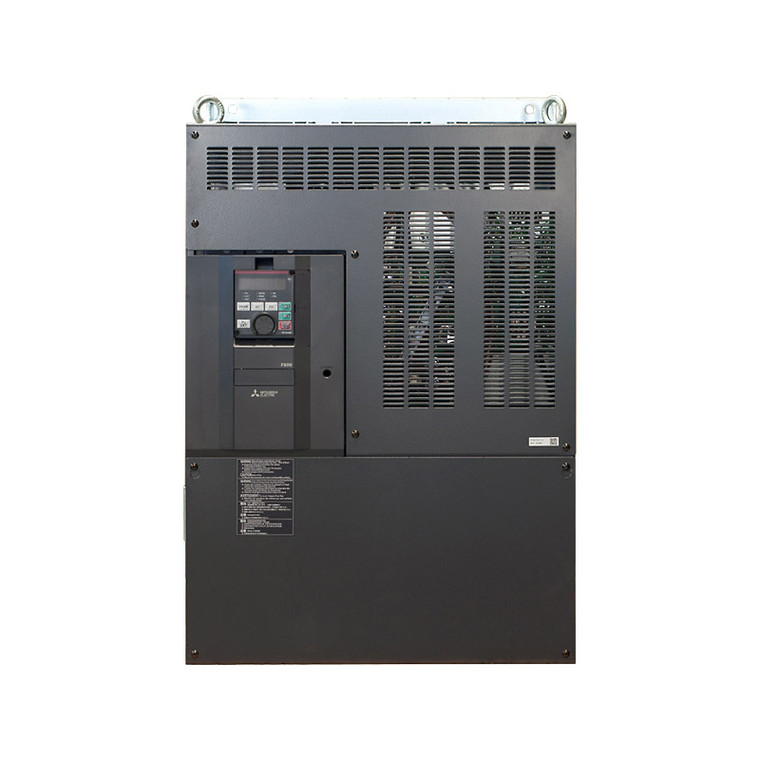

MITSUBISHI F800 Series
***This unit must be paired with a FR-CC2 module unit to function!
Option 1:Â FR-F842-12120-3-60+FR-CC2-H560K-60
Option 2:Â FR-F842-12120-3-60+FR-CC2-H630K-60
Dimensions
P frame: (H) 52.4†(W) 21.3†(D) 17.3â€
Q frame: (H) 62.2†(W) 26.8†(D) 17.3â€
R frame: (H) 52.4†(W) 23.6†(D) 17.3â€
S frame: (H) 62.2†(W) 23.6†(D) 17.3â€
Mitsubishi F800 Series VFD FeaturesÂ
The F800 series is a VFD range which has been optimized for maximum energy savings with pump and fan control. The F800 is equally at home in an industrial environment or in the residential / commercial sector as part of an integrated HVAC solution.
Highlights
- NEMA 1 / UL-1 rated: FR-F800 is Plenum-Rated and can be mounted as a stand-alone unit when required – no need to provide a separate enclosure*
- Built-in BACnet MS/TP or Modbus RTU communications: Capability for simple integration into HVAC communication networks
- Built-in filter: Limits the effects of radio noise on sensitive equipment
- Built-in PLC: Allows the drive to be customized to individual requirements and can avoid the need to have a separate master controller
- Optimum Excitation Control: FR-F800 uses vector drive technology to calculate motor load and ensures maximum energy savings, even if motor loading changes
- 3 programmable skip frequencies: Avoid points of mechanical resonance in ducting and pipework.
- Drive settings can be uploaded or downloaded: Using a standard USB memory stick
- Real-time clock: Drive trip messages are ‘time stamped’ for diagnostic purposes **
- Bi-Directional Coasting Motor Restart: FR-F800 can safely ‘catch’ and control a motor which is already spinning (in either direction) on start-up.
- Advanced PID control features:
- 2 Independent PID loops
- Pre-Charge Mode
- Sleep Mode
- Multiple Motor control (up to 4)
- Selectable response to ‘loss of signal’
- Control of high efficiency IPM motors
- Advanced Power Monitoring Capability: Including pulse train output
- UL-approved rating: For single phase operation (coming soon)
- Out-of-range warning system: Detects broken drive belts and other potential mechanical problems
Notes
* Drive Sizes up to 40HP
** Requires the use of the FR-LU08 keypad
