Technical Specifications
Model:

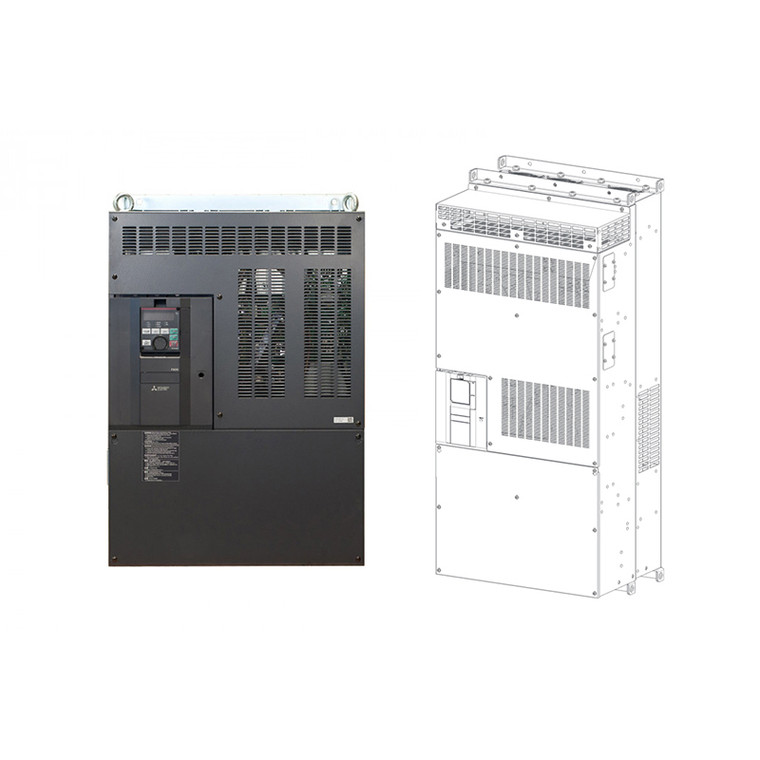

FR-F842-09620-3-60+FR-CC2-H500K-60
Brand:
MITSUBISHI
Product Condition:
New
Horsepower Rating:
800 HP
HP Rating @ 110% OL:
800 HP
Rated Amps:
962 A
Amp Rating @ 110% OL:
962 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
962 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
IP 00
Frame Size:
Q+S
Series:
F800
Product Information
MITSUBISHI F800 Series
The F800 series is a VFD range which has been optimized for maximum energy savings with pump and fan control. The F800 is equally at home in an industrial environment or in the residential / commercial sector as part of an integrated HVAC solution.
Standard Features
What is included?
FR-F842-09620-3-60
FR-CC2-H500K-60
Dimensions
P frame: (H) 52.4” (W) 21.3” (D) 17.3”
Q frame: (H) 62.2” (W) 26.8” (D) 17.3”
R frame: (H) 52.4” (W) 23.6” (D) 17.3”
S frame: (H) 62.2” (W) 23.6” (D) 17.3”
