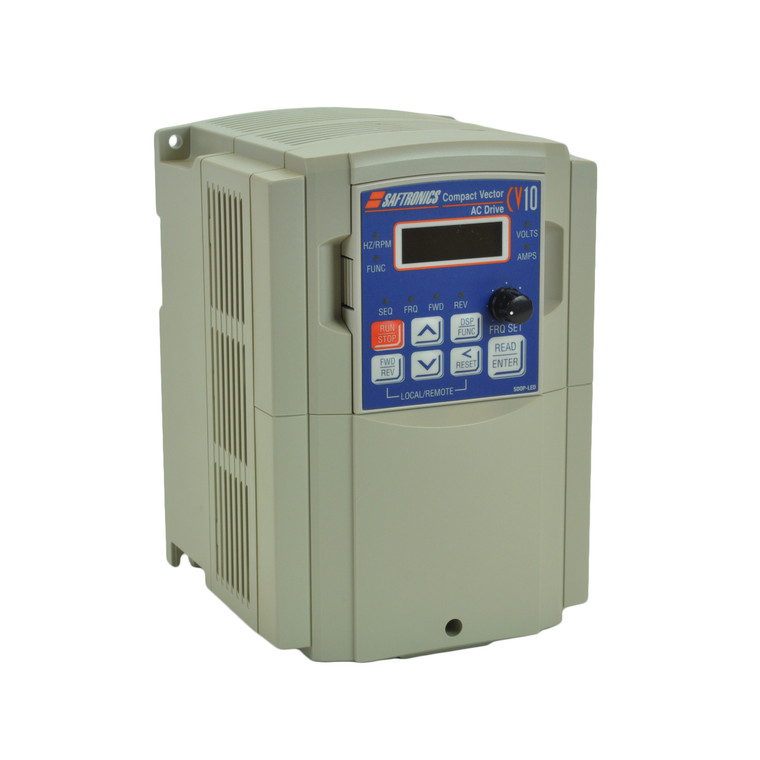

7.5HP 230V Saftronics VFD, Inverter, AC Drive CV102007-9
Brand: Saftronics
Model: CV102007-9
Condition: New Surplus
Rating:
0% of 100
Compare with similar items
This Item
![]() |
![]() |
![]() |
|
|
![]() |
|
7.5HP 230V Saftronics VFD, Inverter, AC Drive CV102007-9 | 7.5HP 230V Galt Electric G500 VFD, Inverter, AC Drive G520-00200UL-01 | 7.5HP 230V Galt Electric G500 VFD, Inverter, AC Drive G520-00200UL-03 | 7.5HP 230V Galt Electric G300 VFD, Inverter, AC Drive G320-00200UL-01 | 7.5HP 230V Mitsubishi VFD, Inverter, AC Drive FR-Z220-5.5K-UL | 7.5HP 230V Saftronics VFD, Inverter, AC Drive PC102007-9 | |
|
|
|
|
|
|
|
Ratings |
Rating:
0%
|
Rating:
0%
|
Rating:
0%
|
Rating:
0%
|
Rating:
0%
|
Rating:
100%
|
Price |
$399.99
|
$583.00
|
$647.77
|
$530.00
|
$399.99
|
$399.99
|
Free Shipping |
No |
Yes |
Yes |
Yes |
Yes |
No |
Series |
CV10
|
G500
|
G500
|
G300
|
Z200
|
PC10
|
Rated Amps |
26 A
|
20 A
|
20 A
|
20 A
|
24 A
|
23.5 A
|
Enclosure Rating |
IP 20
|
IP 20
|
IP 20
|
IP 20
|
IP 00
|
IP 20
|
Brand |
Saftronics
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
MITSUBISHI
|
Saftronics
|
Horsepower Rating |
7.5 HP
|
7.5 HP
|
7.5 HP
|
7.5 HP
|
7.5 HP
|
7.5 HP
|
Rated Voltage |
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
Model |
CV102007-9
|
G520-00200UL-01
|
G520-00200UL-03
|
G320-00200UL-01
|
FR-Z220-5.5K-UL
|
PC102007-9
|
Technical Specifications
Phase Rating | 3 Phase Input - 3 Phase Output |
---|---|
Constant Torque / Variable Torque | Variable Torque |
Series | CV10 |
Phase | Three Phase |
Rated Amps | 26 A |
Enclosure Rating | IP 20 |
Brand | Saftronics |
Horsepower Rating | 7.5 HP |
Rated Voltage | 230 V |
Product Condition | New Surplus |
Output Voltage | 230 V |
Output Amperage Rating | 26 A |
HP Rating @ 150% OL | 7.5 HP |
Amp Rating @ 150% OL | 26 A |
Model | CV102007-9 |
Height | 10.24 in |
Width | 7.32 in |
Depth | 7.68 in |
Product Information
Saftronics CV10 Series
The CV10 offers both open sensorless vector control and V/Hz control modes, built-in PLC Smart Relay, motor auto tuning for optimal performance, a user friendly LED keypad with speed potentiometer and built-in Modbus RTU and ASCII.
Standard Features
- 650Hz Maximum Output Frequency
- Heavy Duty Rated
- Overload Protection of 150% for up to 1 minute.
- 2 to 16Khz Carrier Frequency
- Built-in Dynamic Braking Transistor
- Sink or Source Digital Inputs
- DC Injection Braking
- 2 or 3 Wire Control
- 18 Pre-defined V/Hz Patterns
- Speed Search
- Auto Torque Boost
- Stall Prevention
- Power Loss Ride Through
- Local/Remote Control
