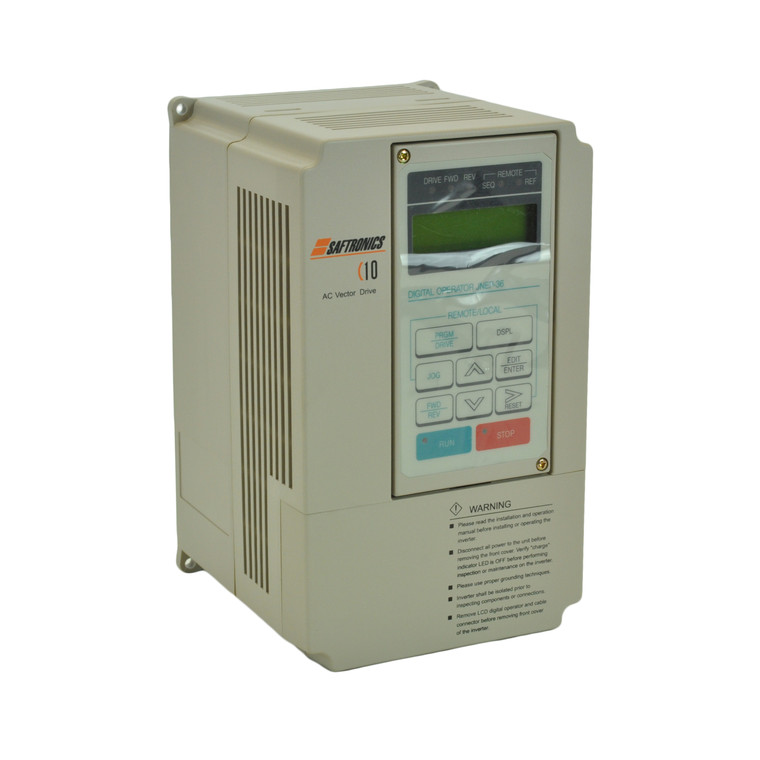

7.5HP & 10HP 230V Saftronics VFD, Inverter, AC Drive C102007-1 (C102007-1)

7.5HP & 10HP 230V Saftronics VFD, Inverter, AC Drive C102007-1 (C102007-1)

Brand:
Saftronics
Model:
C102007-1
Condition:
New Surplus
0 Customer Reviews
VFDs.com Guarantee Badge
In Stock
Online Price: $499.99
Adding to cart… The item has been added
Model: C102007-1
  • 7.5 & 10 HP
  • 24 & 32 A
  • 230 V
  • 3-Phase
  • UL Type 1
  • VT
Free shipping over $50*
Write a Review

Technical Specifications

Product Information

Saftronics C10 Series

When versatility is needed across a range of customized OEM applications, the C10 series can be modified and personalized to your unique application using its Onboard Application Software. The C10 series drive has a strong set of standard attributes that are ideal for industrial situations.

Features

  • 400Hz maximum output frequency
  • 0.5% Speed control accuracy
  • Overload protection of 150% for up to 1 minute
  • 3 Programmable analog inputs
  • 2 Programmable analog outputs
  • 8 Digital inputs (sink or source)
  • 2 or 3 wire control
  • 3 digital outputs
  • 16 preset speeds
  • Speed search
  • RS-485 Modbus RTU
  • DC injection baking
  • Over/under torque detection
  • Power loss ride-thru
  • 33 monitoring functions
  • Fault history (up to 4)
  • Onboard application software
  • Sensorless wector, V/Hz, and V/Hz with PG feedback control modes
  • Digital Pulse Train Input (0 to 32 KHz)
  • Motor auto tuning for optimum motor performance
  • PID Mode with sleep function
  • Graphical LCD operator interface with copy function
  • Built-in braking transistor
Download Manual
