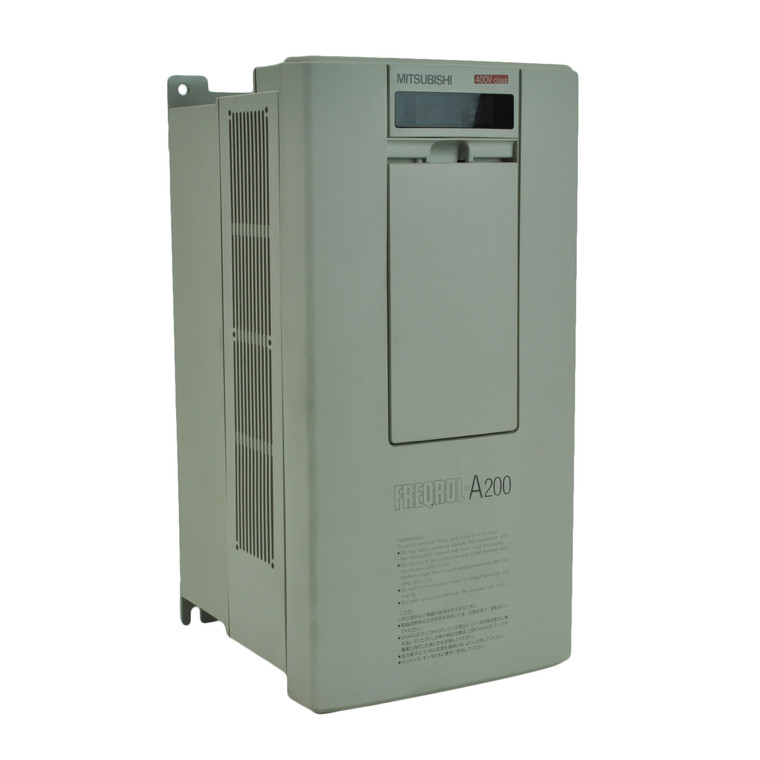

60HP 460V Mitsubishi VFD, Inverter, AC Drive FR-A241E-45K-UL (FR-A241E-45K-UL)

60HP 460V Mitsubishi VFD, Inverter, AC Drive FR-A241E-45K-UL (FR-A241E-45K-UL)

Brand:
MITSUBISHI
Model:
FR-A241E-45K-UL
Condition:
New with Defects or Obsolete
0 Customer Reviews
Out Of Stock
Call for Price
Adding to cart… The item has been added

Drive Details

Manufacturer
Mitsubishi

Series
A201E

Model
FR-A241E-45K-UL

Condition
Obsolete

Constant/Variable Torque
CT/VT

Horse Power
60 HP

Maximum Amps
86 A

Input
3-Phase
380-460V

Output
3-Phase
380-460V

Dimensions
Height: 27.56 in
Width: 18.50 in
Depth: 14.49 in

Enclosure
IP00

Write a Review

Technical Specifications

Model:
FR-A241E-45K-UL
Brand:
MITSUBISHI
Product Condition:
New with Defects or Obsolete
Horsepower Rating:
60 HP
HP Rating @ 150% OL:
60 HP
Rated Amps:
86 A
Amp Rating @ 150% OL:
86 A
Rated Voltage:
460 V
Output Voltage:
460 V
Output Amperage Rating:
86 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
IP 00
Height:
27.56 in
Width:
18.50 in
Depth:
14.49 in

Product Information

MITSUBISHI A201E Series

Mitsubishi A201E Series AC Drive

Highlights

Drive Details

Manufacturer
Mitsubishi

Series
A201E

Model
FR-A241E-45K-UL

Condition
Obsolete

Constant/Variable Torque
CT/VT

Horse Power
60 HP

Maximum Amps
86 A

Input
3-Phase
380-460V

Output
3-Phase
380-460V

Dimensions
Height: 27.56 in
Width: 18.50 in
Depth: 14.49 in

Enclosure
IP00

Standard Features

  • High torque at low speeds. Magnetic flux vector control provides up to 200-300% starting torque.
  • Line regenerative converter. Integrated design reduces panel space requirements by 60-80% over separate components.
  • Continuous braking power. Enables 100% continuous regeneration and provides 150% overload for 60 seconds.
  • Tripless operation. Selectable stall prevention function protects against overcurrent tripping.
  • Quiet operation. Intelligent power module (IPM) incorporates IGBT transistor technology for quiet motor operation.
  • Optional easy-to-use parameter unit. Parameter units are used for operator control, reading and writing parameters, and drive monitoring.
  • High functionality. Software configuration with many adjustable parameters allows tailoring the drive to a wide variety of applications.
    • Download Manual
