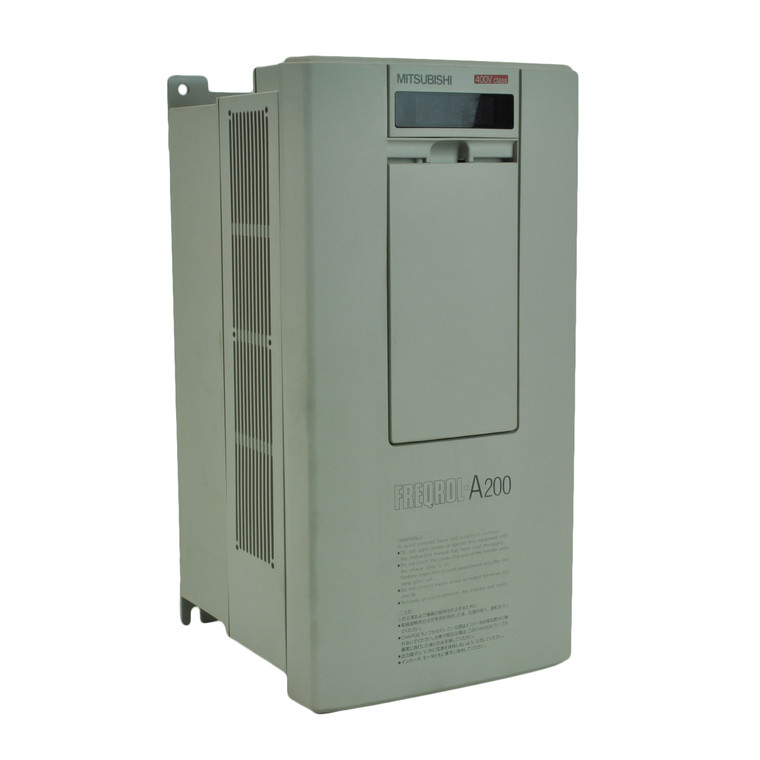

30HP 460V Mitsubishi VFD, Inverter, AC Drive FR-A241E-22K-UL (FR-A241E-22K-UL)

30HP 460V Mitsubishi VFD, Inverter, AC Drive FR-A241E-22K-UL (FR-A241E-22K-UL)

Brand:
MITSUBISHI
Model:
FR-A241E-22K-UL
Condition:
New with Defects or Obsolete
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added

Drive Details

Manufacturer
Mitsubishi

Series
A201E

Model
FR-A241E-22K-UL

Condition
Obsolete

Constant/Variable Torque
CT/VT

Horse Power
30 HP

Maximum Amps
43 A

Input
3-Phase
380-460V

Output
3-Phase
380-460V

Dimensions
Height: 23.62 in
Width: 14.17 in
Depth: 12.60 in

Enclosure
IP00

Write a Review

Technical Specifications

Product Information

MITSUBISHI A201E Series

Mitsubishi A201E Series AC Drive

Standard Features

  • High torque at low speeds. Magnetic flux vector control provides up to 200-300% starting torque.
  • Line regenerative converter. Integrated design reduces panel space requirements by 60-80% over separate components.
  • Continuous braking power. Enables 100% continuous regeneration and provides 150% overload for 60 seconds.
  • Tripless operation. Selectable stall prevention function protects against overcurrent tripping.
  • Quiet operation. Intelligent power module (IPM) incorporates IGBT transistor technology for quiet motor operation.
  • Optional easy-to-use parameter unit. Parameter units are used for operator control, reading and writing parameters, and drive monitoring.
  • High functionality. Software configuration with many adjustable parameters allows tailoring the drive to a wide variety of applications.
    • Download Manual
