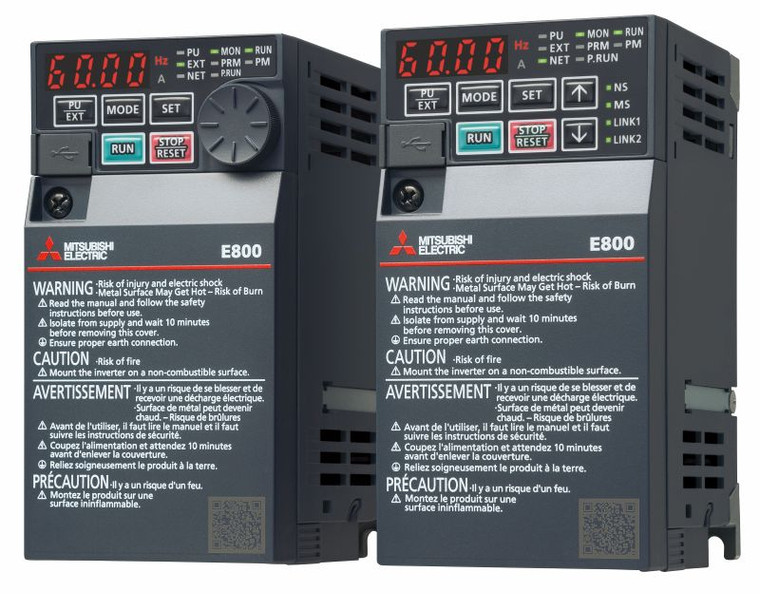

5HP & 3HP 575V Mitsubishi E800 VFD, Inverter, AC Drive FR-E860-0040-5-60

Brand: MITSUBISHI
Model: FR-E860-0040-5-60
Condition: New
Rating:
0% of 100

Out of stock
List Price $1,080.00 Online Price $1,079.98

Highlights

  • Compact Design - Save space with a compact footprint to control 3-phase motors up to 10HP (with expansion in the future) at 200V, 400V and 600V.
  • Dual Overload Rating - Achieve top performance in smaller frame sizes with light duty (LD) and normal duty (ND) overload current ratings.
  • Auto-tune to IM and PM Motors - Setup and commission quickly and easily without time-consuming tuning or the need for on-site support.
  • RS-485 and "Dual-Port" Ethernet Protocol Models - Switch between Ethernet protocols simply by changing internal parameters. The FR-E800 series inverters support a variety of open networks without the need for additional option cards.
  • MELSEC 2K Step PLC - Reduce internal components and save panel space, eliminating wiring time, and reducing system setup times. Operation of the system can be customized by the FR-E800's built-in PLC feature.
  • Inverter-to-Inverter Linking - Create small-scale systems by connecting multiple VFDs via Ethernet protocols. The communication between multiple inverters is carried out through the inputs/outputs and built-in PLC.
  • Corrosion Alert System - FR-E800 is the world's first system to identify signs of damage caused by hydrogen sulfide or other corrosive gases. The operator receives a notification when the production environment needs to be improved or risk the possibility of unplanned downtime.
  • Life Diagnostics Function - Analyze and determine remaining lifetime of critical components, such as capacitors, contact relays, cooling fan, and inrush current limit resistor.
Compare with similar items

Technical Specifications
Phase Rating 3 Phase Input - 3 Phase Output
Rated Input Frequency 60 Hz
Constant Torque / Variable Torque Variable Torque
Series E800
Phase Three Phase
Rated Amps 4 A, 5.6 A
Enclosure Rating IP 20
Brand MITSUBISHI
Horsepower Rating 3 HP, 5 HP
Rated Voltage 575 V
Product Condition New
Output Voltage 575 V
Output Amperage Rating 5.6 A
HP Rating @ 120% OL 5 HP
HP Rating @ 150% OL 3 HP
Amp Rating @ 120% OL 5.6 A
Amp Rating @ 150% OL 4 A
Model FR-E860-0040-5-60
Height 5.91 in
Width 5.51 in
Depth 5.31 in
Warranty 1 Year
Product Information

MITSUBISHI E800 Series

FR-E800 Series

The FR-E800 Series variable frequency drive is built upon Mitsubishi Electric's proven variable speed control technology throughout years of reliable operation across various constant and variable torque applications. Designed to save energy and minimize cost, the FR-E800 brings together advances in quality, performance, and predictive maintenance capabilities in one multi-purpose inverter.

Highlights

  • Compact Design - Save space with a compact footprint to control 3-phase motors up to 10HP (with expansion in the future) at 200V, 400V and 600V.
  • Dual Overload Rating - Achieve top performance in smaller frame sizes with light duty (LD) and normal duty (ND) overload current ratings.
  • Auto-tune to IM and PM Motors - Setup and commission quickly and easily without time-consuming tuning or the need for on-site support.
  • RS-485 and "Dual-Port" Ethernet Protocol Models - Switch between Ethernet protocols simply by changing internal parameters. The FR-E800 series inverters support a variety of open networks without the need for additional option cards.
  • MELSEC 2K Step PLC - Reduce internal components and save panel space, eliminating wiring time, and reducing system setup times. Operation of the system can be customized by the FR-E800's built-in PLC feature.
  • Inverter-to-Inverter Linking - Create small-scale systems by connecting multiple VFDs via Ethernet protocols. The communication between multiple inverters is carried out through the inputs/outputs and built-in PLC.
  • Corrosion Alert System - FR-E800 is the world's first system to identify signs of damage caused by hydrogen sulfide or other corrosive gases. The operator receives a notification when the production environment needs to be improved or risk the possibility of unplanned downtime.
  • Life Diagnostics Function - Analyze and determine remaining lifetime of critical components, such as capacitors, contact relays, cooling fan, and inrush current limit resistor.
