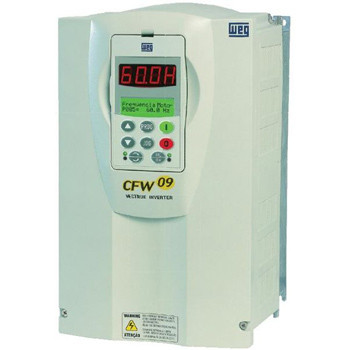

50HP & 60HP 460V WEG VFD, Inverter, AC Drive CFW-090070TGDBZ (CFW-090070TGDBZ)

50HP & 60HP 460V WEG VFD, Inverter, AC Drive CFW-090070TGDBZ (CFW-090070TGDBZ)

Brand:
WEG
Model:
CFW-090070TGDBZ
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
List Price:  $9,300.00
Online Price: $5,268.99
Adding to cart… The item has been added
  • V/Hz or Sensorless Vector Control via parameter selection
  • Self-tuning to motor parameters
  • NEMA 1 Enclosure up to 200HP
  • IP20 “Finger Safe” Enclosure from 250 to 500HP
  • 200-240V or 380-480V input voltage
  • Single or Three-phase input voltage up to 3HP/230V
  • 150% current overload capacity
  • DC bus connections accessible
  • Detachable Smart Keypad with dual display and Copy Function
  • 32 bit RISC microprocessor controlled PWM output
  • 1.25 / 2.5 / 5 / 10 kHz adjustable switching frequency
  • Six isolated programmable digital inputs
  • Three programmable relay outputs (250Vac / 1A)
  • Two isolated programmable analog inputs
  • Two programmable analog outputs
  • Protective features: Over current, motor overload, drive over temperature, output phase-to-phase and phase-to-ground short circuit, DC bus over and under voltage, power supply under voltage and phase loss and external fault
  • Control features: Linear and “S” amp acceleration and deceleration, local/remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, adjustable V/Hz profi le, maximum and minimum adjustable motor speed limits, three skip frequencies, adjustable output current limit, JOG, ride-thru, fl ying start and PID regulator
  • Display readings: Motor speed, frequency, voltage, current and torque, output power (kW), last four faults, drive status, digital and analog I/O status, hours powered and hours running
  • Ambient: 32ºF (0ºC) to 104ºF (40ºC), 3300 ft (1000m) altitude, 90% humidity, non- condensing
    • Write a Review

    Technical Specifications

    Model:
    CFW-090070TGDBZ
    Brand:
    WEG
    Product Condition:
    New
    Horsepower Rating:
    50 HP
    Horsepower Rating:
    60 HP
    HP Rating @ 110% OL:
    60 HP
    HP Rating @ 150% OL:
    50 HP
    Rated Amps:
    70 A
    Amp Rating @ 110% OL:
    86 A
    Amp Rating @ 150% OL:
    70 A
    Rated Voltage:
    460 V
    Output Voltage:
    460 V
    Output Amperage Rating:
    70 A
    Phase Rating:
    3 Phase Input - 3 Phase Output
    Phase:
    Three Phase
    Enclosure Rating:
    UL Type 1
    Height:
    21.60 in
    Width:
    13.20 in
    Depth:
    10.80 in

    Product Information

    WEG CFW09 Series

    WEG CFW09 Series Sensorless Vector Inverter

    The WEG CFW09 Series of Variable Frequency Drives incorporates the world's most advanced technology in drives for three-phase AC induction motors. The Vectrue Technologyâ„¢ represents a significant innovation, allowing this generation of WEG VFD's to combine Volts/Hertz, Sensorless Vector and Closed Loop Vector (with encoder) control techniques all in one product. In addition, WEG's exclusive Optimal Brakingâ„¢ technology eliminates the need for the dynamic braking resistor in some applications allowing a simpler, more compact and economic solution.

    Features:

    Highlights

  • V/Hz or Sensorless Vector Control via parameter selection
  • Self-tuning to motor parameters
  • NEMA 1 Enclosure up to 200HP
  • IP20 “Finger Safe” Enclosure from 250 to 500HP
  • 200-240V or 380-480V input voltage
  • Single or Three-phase input voltage up to 3HP/230V
  • 150% current overload capacity
  • DC bus connections accessible
  • Detachable Smart Keypad with dual display and Copy Function
  • 32 bit RISC microprocessor controlled PWM output
  • 1.25 / 2.5 / 5 / 10 kHz adjustable switching frequency
  • Six isolated programmable digital inputs
  • Three programmable relay outputs (250Vac / 1A)
  • Two isolated programmable analog inputs
  • Two programmable analog outputs
  • Protective features: Over current, motor overload, drive over temperature, output phase-to-phase and phase-to-ground short circuit, DC bus over and under voltage, power supply under voltage and phase loss and external fault
  • Control features: Linear and “S” amp acceleration and deceleration, local/remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, adjustable V/Hz profi le, maximum and minimum adjustable motor speed limits, three skip frequencies, adjustable output current limit, JOG, ride-thru, fl ying start and PID regulator
  • Display readings: Motor speed, frequency, voltage, current and torque, output power (kW), last four faults, drive status, digital and analog I/O status, hours powered and hours running
  • Ambient: 32ºF (0ºC) to 104ºF (40ºC), 3300 ft (1000m) altitude, 90% humidity, non- condensing

    • Standard Features

    Drive Details

    Manufacturer
    WEG

    Series
    CFW09

    Model
    CFW-090070TGDBZ

    Condition
    New

    Constant/Variable Torque
    CT

    Horse Power
    CT: 50 HP
    VT: 60 HP

    Maximum Amps
    CT: 70 A
    VT: 86 A

    Input
    3-Phase
    380-480V

    Output
    3-Phase
    380-480V

    Dimensions
    Height: 21.60 in
    Width: 13.20 in
    Depth: 10.80 in

    Enclosure
    NEMA 1

    Download Manual
