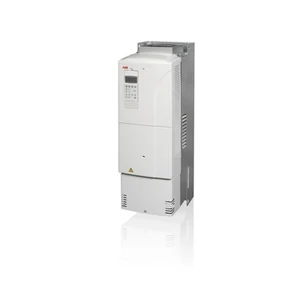

ABB ACS800-11 VFD, 50HP, 62A, 460V (ACS800-11-0060-5)

ABB ACS800-11 VFD, 50HP, 62A, 460V (ACS800-11-0060-5)

Brand:
ABB
Model:
ACS800-11-0060-5
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • Direct torque control (DTC) as standard
  • IP21 enclosure class
  • Analog and digital I/O extension modules and encoder options
  • EMC filters and LCL line filter
  • Supports a wide range of fieldbus protocols
    • Write a Review

    Technical Specifications

    Product Information

    ABB ACS800-11 Series

    ACS800-11 Series Regenerative wall-mounted single drives

    Your regenerative wall-mounted drives in one compact package

    These wall-mounted regenerative single drives save you more space and energy. Plus they allow full power flow in both motor and generating modes. Equipped with an active supply unit, LCL line filter and charging circuitry integrated inside the drive. A wide range of built-in features and options give you optimal solutions for different applications.

    Highlights

    Standard Features

    Drive Details

    Manufacturer
    ABB

    Series
    ACS800-11

    Model
    ACS8001100605

    Condition
    New

    Constant/Variable Torque
    CT/VT

    Horsepower?
    LO: 60 HP
    HO: 50 HP

    Maximum Amps?
    NO: 82 A
    LO: 78 A
    HO: 62 A

    Input
    3-Phase
    380 to 500V at 50/60 Hz

    Output
    3-Phase
    380 to 500V at 50/60 Hz

    Enclosure Rating
    IP21

    Frame Size
    R5

    Dimensions
    Height: 32.1 in
    Width: 10.4 in
    Depth: 15.4 in

    Download Manual
