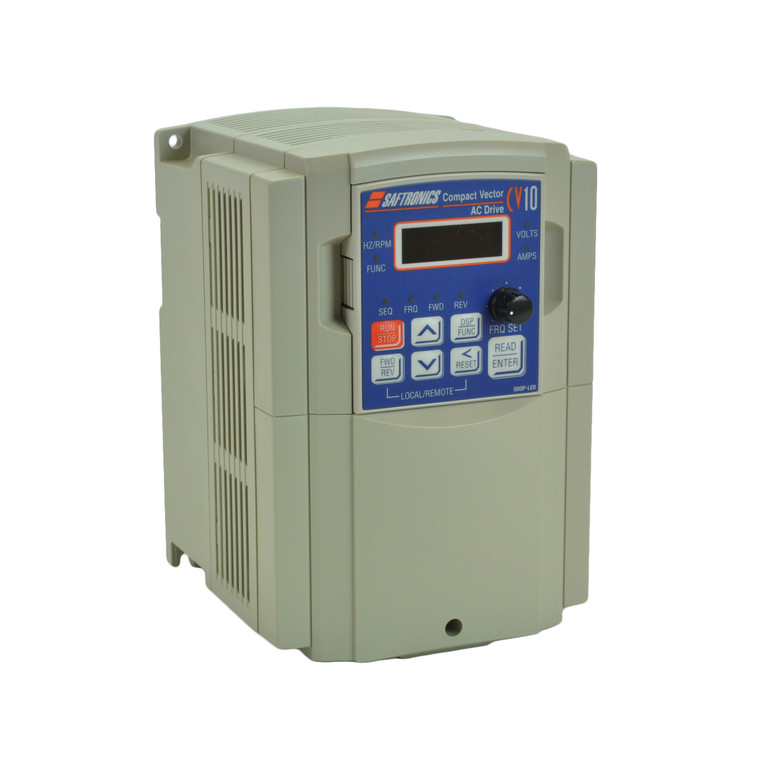

3HP 460V Saftronics VFD, Inverter, AC Drive CV104003-9
Brand: Saftronics
Model: CV104003-9-R3F8D
Condition: Seller refurbished
Rating:
0% of 100
Compare with similar items
This Item
![]() |
|
![]() |
|
|
![]() |
|
3HP 460V Saftronics VFD, Inverter, AC Drive CV104003-9 | 3HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00055UL-02 | 3HP 460V Galt Electric G500 VFD, Inverter, AC Drive G540-00050UL-01 | 2HP & 3HP 460V Galt Electric G300 VFD, Inverter, AC Drive G340-00050UL-01 | 3HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00055UL-01 | 3HP 460V Saftronics VFD, Inverter, AC Drive S104003-9 | |
|
|
|
|
|
|
|
Ratings |
Rating:
0%
|
Rating:
100%
|
Rating:
100%
|
Rating:
0%
|
Rating:
100%
|
Rating:
0%
|
Price |
$223.99
|
$231.00
|
$378.00
|
$344.00
|
$231.00
|
$199.99
|
Free Shipping |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
Series |
CV10
|
G200
|
G500
|
G300
|
G200
|
S10
|
Rated Amps |
5.2 A
|
5.5 A
|
5 A
|
5 A
|
5.5 A
|
5.2 A
|
Enclosure Rating |
IP 20
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
Brand |
Saftronics
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
Saftronics
|
Horsepower Rating |
3 HP
|
3 HP
|
3 HP
|
3 HP
|
3 HP
|
3 HP
|
Rated Voltage |
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
Model |
CV104003-9
|
G240-00055UL-02
|
G540-00050UL-01
|
G340-00050UL-01
|
G240-00055UL-01
|
S104003-9
|
Technical Specifications
Phase Rating | 3 Phase Input - 3 Phase Output |
---|---|
Constant Torque / Variable Torque | Variable Torque |
Series | CV10 |
Phase | Three Phase |
Rated Amps | 5.2 A |
Enclosure Rating | IP 20 |
Brand | Saftronics |
Horsepower Rating | 3 HP |
Rated Voltage | 460 V |
Product Condition | Seller refurbished |
Output Voltage | 460 V |
Output Amperage Rating | 5.2 A |
HP Rating @ 150% OL | 3 HP |
Amp Rating @ 150% OL | 5.2 A |
Model | CV104003-9 |
Height | 7.36 in |
Width | 5.04 in |
Depth | 5.83 in |
Product Information
Saftronics CV10 Series
The CV10 offers both open sensorless vector control and V/Hz control modes, built-in PLC Smart Relay, motor auto tuning for optimal performance, a user friendly LED keypad with speed potentiometer and built-in Modbus RTU and ASCII.
Standard Features
- 650Hz Maximum Output Frequency
- Heavy Duty Rated
- Overload Protection of 150% for up to 1 minute.
- 2 to 16Khz Carrier Frequency
- Built-in Dynamic Braking Transistor
- Sink or Source Digital Inputs
- DC Injection Braking
- 2 or 3 Wire Control
- 18 Pre-defined V/Hz Patterns
- Speed Search
- Auto Torque Boost
- Stall Prevention
- Power Loss Ride Through
- Local/Remote Control
