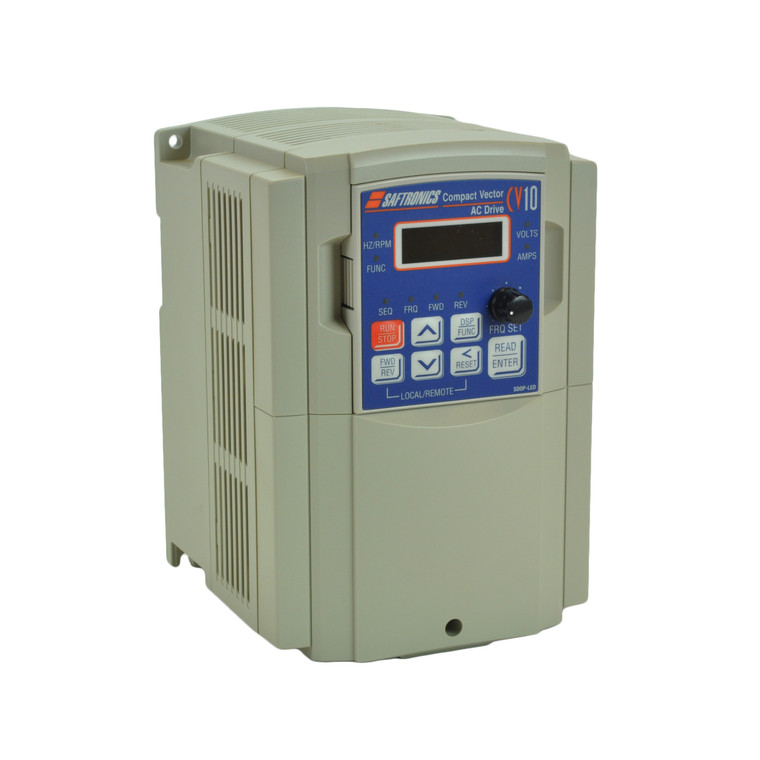

1HP 460V Saftronics VFD, Inverter, AC Drive CV104001-9
Brand: Saftronics
Model: CV104001-9-R3F8D
Condition: Seller refurbished
Rating:
0% of 100
Compare with similar items
This Item
![]() |
|
|
![]() |
![]() |
![]() |
|
1HP 460V Saftronics VFD, Inverter, AC Drive CV104001-9 | 1HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00025UL-02 | 1HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00025UL-01 | 1HP 460V Saftronics VFD, Inverter, AC Drive S104001-4FS | 1HP 460V Hitachi VFD, Inverter, AC Drive L300P-007HBRM | 1HP 460V Mitsubishi VFD, Inverter, AC Drive FR-D740-022-NA | |
|
|
|
|
|
|
|
Ratings |
Rating:
0%
|
Rating:
100%
|
Rating:
0%
|
Rating:
0%
|
Rating:
0%
|
Rating:
0%
|
Price |
$152.99
|
$174.00
|
$174.00
|
$199.99
|
$199.99
|
List Price
$405.00
Online Price
$303.75
|
Free Shipping |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
Series |
CV10
|
G200
|
G200
|
S10
|
L300
|
D700
|
Rated Amps |
2.3 A
|
2.5 A
|
2.5 A
|
2.3 A
|
2.5 A
|
2.2 A
|
Enclosure Rating |
IP 20
|
IP 20
|
IP 20
|
UL Type 4X
|
UL Type 1
|
IP 20
|
Brand |
Saftronics
|
GALT ELECTRIC
|
GALT ELECTRIC
|
Saftronics
|
HITACHI
|
MITSUBISHI
|
Horsepower Rating |
1 HP
|
1 HP
|
1 HP
|
1 HP
|
1 HP
|
1 HP
|
Rated Voltage |
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
Model |
CV104001-9
|
G240-00025UL-02
|
G240-00025UL-01
|
S104001-4FS
|
L300P-007HBRM
|
FR-D740-022-NA
|
Technical Specifications
Phase Rating | 3 Phase Input - 3 Phase Output |
---|---|
Constant Torque / Variable Torque | Variable Torque |
Series | CV10 |
Phase | Three Phase |
Rated Amps | 2.3 A |
Enclosure Rating | IP 20 |
Brand | Saftronics |
Horsepower Rating | 1 HP |
Rated Voltage | 460 V |
Product Condition | Seller refurbished |
Output Voltage | 460 V |
Output Amperage Rating | 2.3 A |
HP Rating @ 150% OL | 1 HP |
Amp Rating @ 150% OL | 2.3 A |
Model | CV104001-9 |
Height | 6.42 in |
Width | 3.54 in |
Depth | 5.79 in |
Product Information
Saftronics CV10 Series
The CV10 offers both open sensorless vector control and V/Hz control modes, built-in PLC Smart Relay, motor auto tuning for optimal performance, a user friendly LED keypad with speed potentiometer and built-in Modbus RTU and ASCII.
Standard Features
- 650Hz Maximum Output Frequency
- Heavy Duty Rated
- Overload Protection of 150% for up to 1 minute.
- 2 to 16Khz Carrier Frequency
- Built-in Dynamic Braking Transistor
- Sink or Source Digital Inputs
- DC Injection Braking
- 2 or 3 Wire Control
- 18 Pre-defined V/Hz Patterns
- Speed Search
- Auto Torque Boost
- Stall Prevention
- Power Loss Ride Through
- Local/Remote Control
