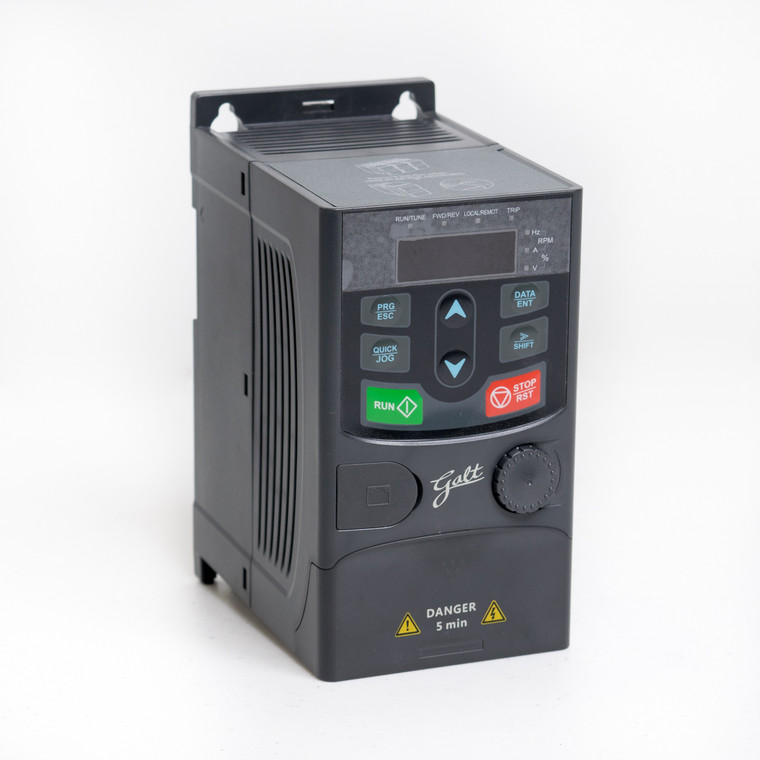

3HP, 240V, 1Ph, Galt Electric G200 VFD (G22S0-00100UL-02)

Name: 3HP, 240V, 1Ph, Galt Electric G200 VFD (G22S0-00100UL-02)
Brand: GALT ELECTRIC
SKU: G22S0-00100UL-02
Price: 514.92 USD
Availability: InStock
Rating: 1 (1 reviews)

Brand:

GALT ELECTRIC

Model:

G22S0-00100UL-02

Condition:

New

1 review

Add Technical Support: Optional

None
30-min Tech Support
60-min Tech Support

In Stock

List Price: $687.00

Online Price: $514.92

Adding to cart… The item has been added

Galt G200 variable frequency drives are micro drives meant for use in smaller applications. These VFDs are sized for 120% overload, but they can be derated for constant torque 150% or 200% overloads as well as higher elevations or ambient temperatures.

The G200 inverter is simple to use and install and is compatible with options like external keypads. This adjustable speed drive is available in multiple input voltages and phases, including 120V / single phase, 240V / single phase, 240V / three phase, and 480V / three phase. G200 VFDs are available up to 15 horsepower.

G22S0-00100UL-02

3 Horsepower
10 Amps
240 Volt
IP20
UL rated
Single phase input, three phase output
Modbus communication protocol standard
3-year manufacturer warranty

Free shipping over $50*

Technical Specifications

Product Information

GALT ELECTRIC G200 Series

Galt Electric's mission is to make technology approachable. The G200 series VFD is the drive that helps handle the everyday applications you encounter. With a simple interface, easy installation, and the capability to control the motors you need.

Galt AC drives are reliable out of the box and backed with a 3-year standard warranty. With online support videos and experts available by phone, email, and chat, you're supported with any question you have. The simple interface and available option card, keypad, and HMI upgrades give you options to make your interactions with the VFD as easy as possible.

The Galt G200 series is the VFD that will help make your system to be reliable, usable, and efficient.

Standard Features

Compact design with options for parallel installation
High performance open-loop sensorless vector control
Integrated PID controller
DC injection, dynamic, and flux braking compatible
Built-in C3 EMC filter to prevent electromagnetic interference
QR code display for additional parameter information and fault troubleshooting
Options for 240V single to three phase conversion
Options for 120V single to 240V three phase conversion

Download Manual

Galt Electric G200 Series Inverter

The G200 series is a industrial duty inverter that can be used for a wide range of applications. The G200's air duct design, hardware configuration, and software capabilities all greatly improve the adaptability along with the user friendliness. Additionally, the G200 series uses vectorized V/F control technology to deliver excellent performance with little-to-no maintenance.
