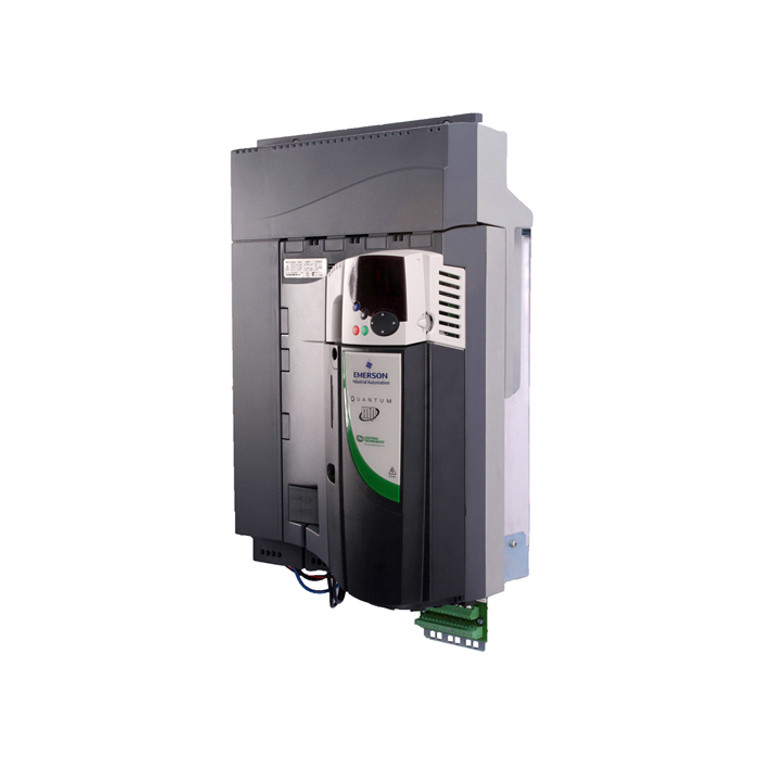

200HP at 460V, 100HP at 230V, Control Techniques VFD, Inverter, DC Drive, QMP350A4R (QMP350A4R)

Control Techniques
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added
  • Flexible system integration
    • Two available SM option module slots for automation control, I/O, feedback devices and communications
    • SMARTCARD for PLC program and parameter storage
    • PC tools for easy configuration, monitoring, and diagnostics
  • Technology for reliability and performance
    • High performance motor control
    • Galvanic isolation (patent pending) between power and control protects the control circuits and other equipment connected to the drive from the high voltages on the power circuit. This feature is unique on DC drives
    • Protection system against poor industrial power supplies and lightning strikes
    • Integrated drive and motor protection
  • Flexible field control
    • Integrated field control on frame size 1 to 8 A
    • Integrated field control on frame size 2 to 20 A
    • Flux control for enhanced open-loop performance
    • External FXMP25 field control to 25 A

Technical Specifications

Control Techniques
Product Condition:
2 year
Horsepower Rating:
200 HP
HP Rating @ 150% OL:
200 HP
Rated Voltage:
230 V
Rated Voltage:
460 V
HP Rating @ 230 V:
100 HP
HP Rating @ 460 V:
200 HP
Rated Amps:
350 A
Amp Rating @ 150% OL:
350 A
Output Amperage Rating:
350 A
Enclosure Rating:
IP 00
Quantum MP
35.00 in
20.30 in
13.00 in

Product Information

Control Techniques Quantum MP Series

Control Techniques’ Quantum MP is a packaged Mentor MP DC drive and is perfect for applications with DC motors already installed.

Mentor MP brings DC drive technology up to date, enabling existing and new DC motors to provide economic and productive service. DC drive technology remains cost effective, efficient and is relatively simple to implement. DC provides many advantages for new applications, especially for regenerative and high power applications.
