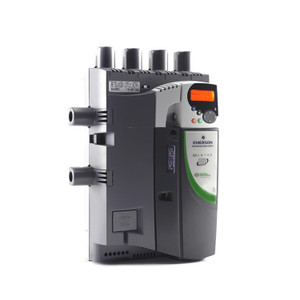

200HP at 460V, 100HP at 230V, Control Techniques VFD, Inverter, DC Drive, QMP350A4

Brand: Control Techniques
Model: QMP350A4
Condition: New
Rating:
0% of 100

Out of stock

Highlights

  • Flexible system integration
    • Two available SM option module slots for automation control, I/O, feedback devices and communications
    • SMARTCARD for PLC program and parameter storage
    • PC tools for easy configuration, monitoring, and diagnostics
  • Technology for reliability and performance
    • High performance motor control
    • Galvanic isolation (patent pending) between power and control protects the control circuits and other equipment connected to the drive from the high voltages on the power circuit. This feature is unique on DC drives
    • Protection system against poor industrial power supplies and lightning strikes
    • Integrated drive and motor protection
  • Flexible field control
    • Integrated field control on frame size 1 to 8 A
    • Integrated field control on frame size 2 to 20 A
    • Flux control for enhanced open-loop performance
    • External FXMP25 field control to 25 A
Technical Specifications
Phase Three Phase
Series Quantum MP
Enclosure Rating IP 00
Brand Control Techniques
Horsepower Rating 200 HP
Rated Voltage 230 V, 460 V
Product Condition New
Maximum Input Voltage 460 V
Minimum Input Voltage 230 V
Minimum Output Voltage 230 V
HP Rating @ 460 V 200 HP
Maximum Output Voltage 460 V
Output Amperage Rating 350 A
HP Rating @ 230 V 100 HP
Rated Amps 350 A
HP Rating @ 150% OL 200 HP
Amp Rating @ 150% OL 350 A
Model QMP350A4
Height 35 in
Width 20.3 in
Depth 13 in
Warranty 2 year
Product Information

Control Techniques Quantum MP Series

Control Techniques’ Quantum MP is a packaged Mentor MP DC drive and is perfect for applications with DC motors already installed.

Mentor MP brings DC drive technology up to date, enabling existing and new DC motors to provide economic and productive service. DC drive technology remains cost effective, efficient and is relatively simple to implement. DC provides many advantages for new applications, especially for regenerative and high power applications.

Highlights

  • Flexible system integration
    • Two available SM option module slots for automation control, I/O, feedback devices and communications
    • SMARTCARD for PLC program and parameter storage
    • PC tools for easy configuration, monitoring, and diagnostics
  • Technology for reliability and performance
    • High performance motor control
    • Galvanic isolation (patent pending) between power and control protects the control circuits and other equipment connected to the drive from the high voltages on the power circuit. This feature is unique on DC drives
    • Protection system against poor industrial power supplies and lightning strikes
    • Integrated drive and motor protection
  • Flexible field control
    • Integrated field control on frame size 1 to 8 A
    • Integrated field control on frame size 2 to 20 A
    • Flux control for enhanced open-loop performance
    • External FXMP25 field control to 25 A
