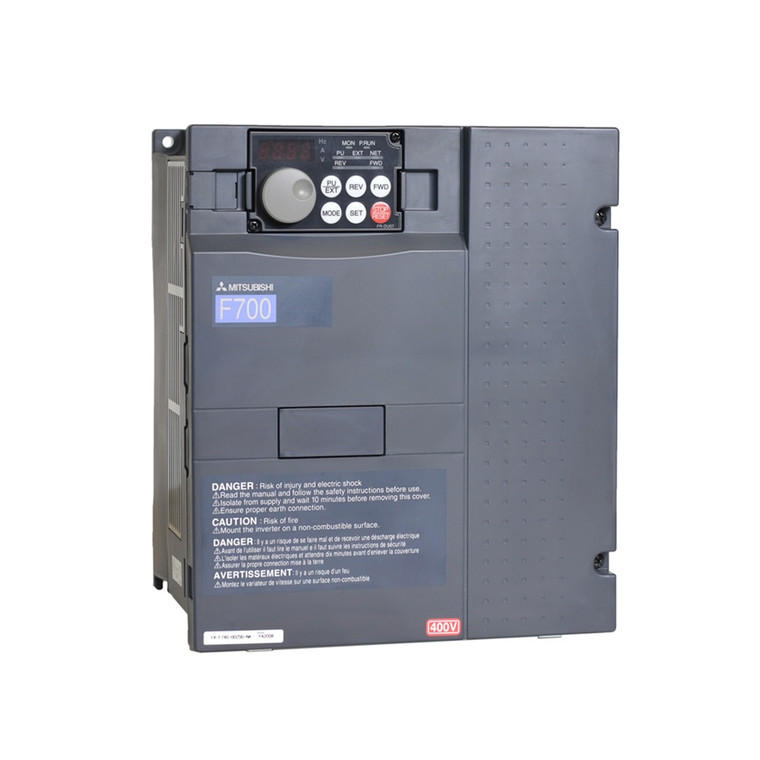

2HP 460V Mitsubishi VFD, Inverter, AC Drive FR-F740-00038-NA
Brand: MITSUBISHI
Model: FR-F740-00038-NA
Condition: New Surplus
Kit Includes:
Highlights
- NEMA 1 UL Type 1 Enclosure Designs: Drive can be mounted as a stand-alone unit where required. (Plenum rated)
- Built-in BACnet MS/TP
- Built-in PLC; programs using GX Developer
- Two I/O cards can be installed simultaneously
- Remote I/O capability: All the drive I/O can be read or controlled over a network
- Includes Removable FR-DU07 control unit with a digital dial that can be used as a speed potentiometer
- Optional FR-PU07-01 keypad can be mounted remotely, display HAND/AUTO, and display the value of three monitors
- Optimum Excitation Control for increased energy savings when motor is not loaded
- 3 user programmable skip frequencies
- Windmill start: Catch a reverse spinning load
- Pre-charge mode
- PID sleep mode
- Second PID function
- Regeneration avoidance
- Standard RS-485 communications
- Mitsubishi or Modbus RTU protocol
- Built-in EMC filter: Conforms to EN61800-3 2nd environmental
- UL Listed for single phase input
Compare with similar items
This Item
|
|
|
|
|
|
|
| 2HP 460V Mitsubishi VFD, Inverter, AC Drive FR-F740-00038-NA | 2HP 460V Galt Electric G500 VFD, Inverter, AC Drive G540-00037UL-01 | 2HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00037UL-02 | 2HP 460V Galt Electric G500 VFD, Inverter, AC Drive G540-00037UL-03 | 2HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00037UL-01 | 1HP & 2HP 460V Galt Electric G300 VFD, Inverter, AC Drive G340-00037UL-01 | |
| Ratings | ||||||
| Price |
List Price
$1,098.00
Online Price
$832.50
|
$347.00
|
$190.00
|
$385.55
|
$190.00
|
$315.00
|
| Free Shipping |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Series |
F700
|
G500
|
G200
|
G500
|
G200
|
G300
|
| Enclosure Rating |
UL Type 1
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
| Brand |
MITSUBISHI
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
| Horsepower Rating |
2 HP
|
2 HP
|
2 HP
|
2 HP
|
2 HP
|
2 HP
|
| Rated Voltage |
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
| Rated Amps |
3.5 A
|
3.7 A
|
3.7 A
|
3.7 A
|
3.7 A
|
3.7 A
|
| Model |
FR-F740-00038-NA
|
G540-00037UL-01
|
G240-00037UL-02
|
G540-00037UL-03
|
G240-00037UL-01
|
G340-00037UL-01
|
Technical Specifications
| Phase | Three Phase |
|---|---|
| Phase Rating | 3 Phase Input - 3 Phase Output |
| Series | F700 |
| Enclosure Rating | UL Type 1 |
| Brand | MITSUBISHI |
| Horsepower Rating | 2 HP |
| Rated Voltage | 460 V |
| Product Condition | New Surplus |
| Output Voltage | 460 V |
| Output Amperage Rating | 3.8 A |
| Rated Amps | 3.5 A |
| HP Rating @ 110% OL | 2 HP |
| HP Rating @ 120% OL | 2 HP |
| Amp Rating @ 110% OL | 3.8 A |
| Amp Rating @ 120% OL | 3.5 A |
| Model | FR-F740-00038-NA |
| Height | 10.2 in |
| Width | 5.9 in |
| Depth | 5.5 in |
| Warranty | 1 Year |
Product Information
MITSUBISHI F700 Series
F700Highlights
- NEMA 1 UL Type 1 Enclosure Designs: Drive can be mounted as a stand-alone unit where required. (Plenum rated)
- Built-in BACnet MS/TP
- Built-in PLC; programs using GX Developer
- Two I/O cards can be installed simultaneously
- Remote I/O capability: All the drive I/O can be read or controlled over a network
- Includes Removable FR-DU07 control unit with a digital dial that can be used as a speed potentiometer
- Optional FR-PU07-01 keypad can be mounted remotely, display HAND/AUTO, and display the value of three monitors
- Optimum Excitation Control for increased energy savings when motor is not loaded
- 3 user programmable skip frequencies
- Windmill start: Catch a reverse spinning load
- Pre-charge mode
- PID sleep mode
- Second PID function
- Regeneration avoidance
- Standard RS-485 communications
- Mitsubishi or Modbus RTU protocol
- Built-in EMC filter: Conforms to EN61800-3 2nd environmental
- UL Listed for single phase input
