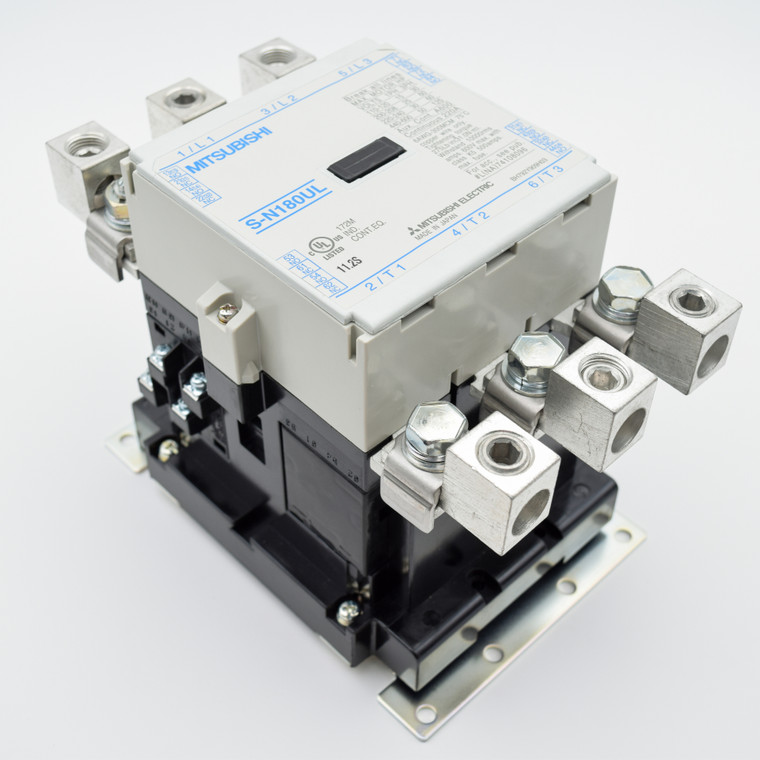

75 HP at 230V, 125 HP at 460V Non-Reversing AC Contactor, Mitsubishi S-N180UL100V (SN180UL100V)

75 HP at 230V, 125 HP at 460V Non-Reversing AC Contactor, Mitsubishi S-N180UL100V (SN180UL100V)

Brand:
MITSUBISHI
Model:
SN180UL100V
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
$400.00
Online Price: $380.00
Adding to cart… The item has been added
  • Incorporation of CAN Terminal for Simple Wiring
    By adopting a CAN terminal, there is no need to remove the screws. The integrated terminal screw is set in a plastic screw holder to prevent the loss of the screw. When the screw is loosened, the screw naturally sets in the screw holder. This is Mitsubishi Electric's original CAN terminal.
  • Unified Design for N Series
    The design of the S-N Series has been unified with a white front face brightening the inside of the panel and providing a cleaner image.
  • Compatible with International Standards
    Most of Mitsubishi Electric's standard products comply with International Standards. Applicable standards: JIS, JEM, IEC, EN, V DE, BS. Approved standards: UL, CSA, LR, BV, NK, KR, TUV.
  • Small-Sized Models S-N10~S-N35
    The S-N Series contactors, starters and relays can be installed on a mounting rail (35mm width). The terminals of these coils are arranged on the contactor with wiring in mind. Furthermore, the distance between the center of the rail and the coil terminals is unified at 38.5mm. (S-N10 to N21, SR-N4)
  • Simple Inspections
    Contactors can be inspected easily by removing the arc cover.
  • Built-in Surge Absorber
    Models with optional built-in surge absorbers on the coil are available.
  • Safe and Speedy Terminal Functions
    Models which have finger protection provide a more safe and speedy connection, even when using closed eyelet (ring) terminal lugs.
    • Write a Review

    Technical Specifications

    Product Information

    MITSUBISHI Series

    Mitsubishi S-N Series Non-Reversing AC Contactor

    Substantial safety and functionality with a full lineup.

    Standard Features

    Product Details:

    Manufacturer
    Mitsubishi

    Series
    SN

    Model
    S-N180UL100V

    Condition
    New

    Amp Rating
    260 A

    Horse Power at 230V
    75 HP

    Horse Power at 460V
    125 HP

    Horse Power at 500V
    150 HP

    Horse Power at 600V
    150 HP

    Auxiliary Contacts
    2NO + 2NC

    Coil Voltage
    100VAC

    UL Listing
    Yes
