Product Information
MITSUBISHI Series

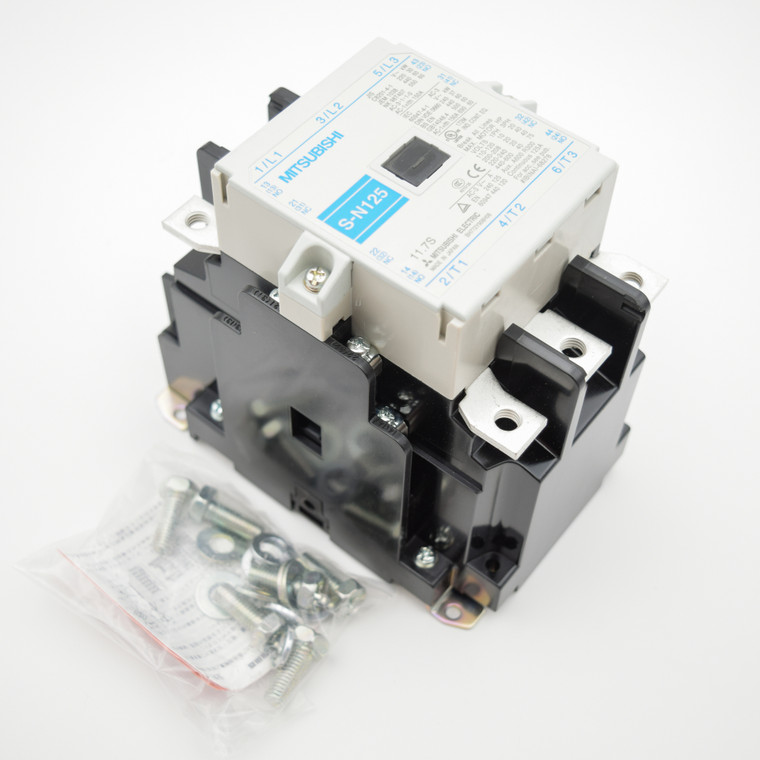

Mitsubishi S-N Series Non-Reversing AC Contactor
Substantial safety and functionality with a full lineup.
Highlights
Incorporation of CAN Terminal for Simple Wiring
By adopting a CAN terminal, there is no need to remove the screws. The integrated terminal screw is set in a plastic screw holder to prevent the loss of the screw. When the screw is loosened, the screw naturally sets in the screw holder. This is Mitsubishi Electric's original CAN terminal.
Unified Design for N Series
The design of the S-N Series has been unified with a white front face brightening the inside of the panel and providing a cleaner image.
Compatible with International Standards
Most of Mitsubishi Electric's standard products comply with International Standards. Applicable standards: JIS, JEM, IEC, EN, V DE, BS. Approved standards: UL, CSA, LR, BV, NK, KR, TUV.
Small-Sized Models S-N10~S-N35
The S-N Series contactors, starters and relays can be installed on a mounting rail (35mm width). The terminals of these coils are arranged on the contactor with wiring in mind. Furthermore, the distance between the center of the rail and the coil terminals is unified at 38.5mm. (S-N10 to N21, SR-N4)
Simple Inspections
Contactors can be inspected easily by removing the arc cover.
Built-in Surge Absorber
Models with optional built-in surge absorbers on the coil are available.
Safe and Speedy Terminal Functions
Models which have finger protection provide a more safe and speedy connection, even when using closed eyelet (ring) terminal lugs.Standard Features
Product Details:
Manufacturer
Mitsubishi
Series
SN
Model
S-N125AC100V
Condition
New
Amp Rating
150 A
Horse Power at 230V
50 HP
Horse Power at 460V
80 HP
Horse Power at 500V
80 HP
Horse Power at 600V
80 HP
Auxiliary Contacts
2NO + 2NC
Coil Voltage
100VAC
UL Listing
No
