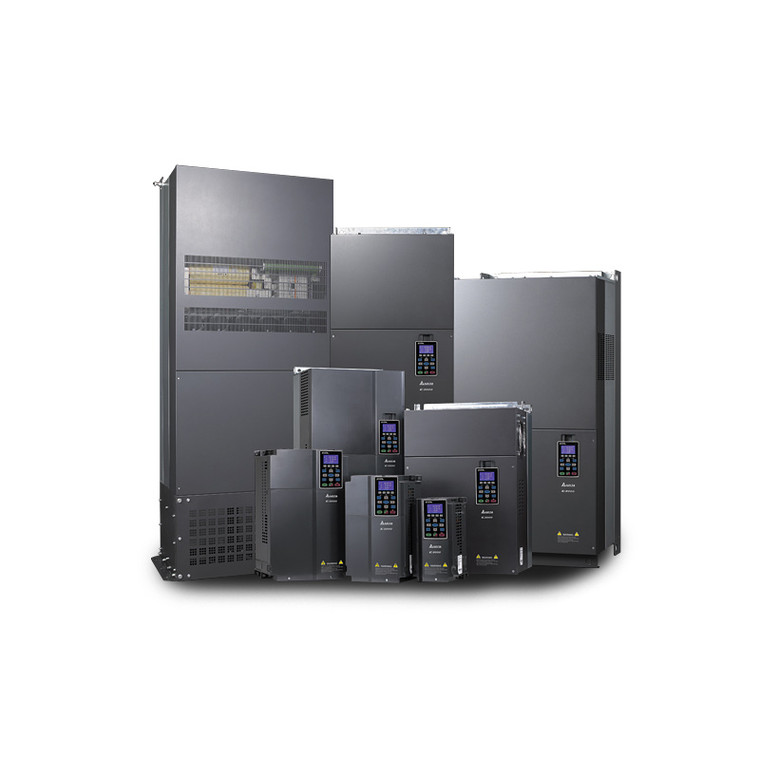

250HP & 215HP 460V Delta C2000 VFD, Inverter, AC Drive VFD1850C43A

Brand: Delta
Model: VFD1850C43A
Condition: New
Rating:
0% of 100

In stock
List Price $19,655.00 Online Price $9,827.50

Highlights

  • Speed/torque/position control mode, dual rating design (Normal duty/heavy duty)
  • Outstanding 4-quadrant torque control/limit
  • 2 in 1 (induction motor and synchronous motor)
  • Built-in Delta PLC function, safe stop function and brake unit
  • Support of various network protocols
  • Synchronous position control
  • Long-life design and life detection of important components
  • Enhanced protections and adaptation to ambient conditions
  • Complies with global safety standards, including CE, UL and cUL
  • Modular design for easy maintenance and many extensions
  • High-speed communication interface with built-in CANopen and MODBUS communication (optional cards for PROFIBUS-DP, DeviceNet, MODBUS TCP and EtherNet/IP)
Compare with similar items

Technical Specifications
Constant Torque / Variable Torque Variable Torque/Constant Torque
Phase Three Phase
Rated Input Frequency 60 Hz
Frame Size G1
Phase Rating 3 Phase Input - 3 Phase Output
Series C2000
Enclosure Rating IP 20
Brand Delta
Horsepower Rating 215 HP, 250 HP
Rated Voltage 460 V
Product Condition New
Output Voltage 460 V
Output Amperage Rating 370 A
Rated Amps 352 A
HP Rating @ 120% OL 250 HP
HP Rating @ 150% OL 215 HP
Amp Rating @ 110% OL 370 A
Amp Rating @ 120% OL 370 A
Amp Rating @ 150% OL 352 A
Model VFD1850C43A
Height 39.37 in
Width 19.69 in
Depth 15.63 in
Warranty 2 Year
Product Information

Delta C2000 Series

Powerful Features. High Efficiency. The C2000 Series AC motor drive provides the most efficient solution for all types of drive applications. It features precise speed, torque and position control functions that are suitable for both sensor and sensorless types of synchronous and asynchronous motors. The C2000 Series is also equipped with built-in PLC functions and supports the CANopen Master/Slave extension for the ultimate in system flexibility and fast data exchange.

Highlights

  • Speed/torque/position control mode, dual rating design (Normal duty/heavy duty)
  • Outstanding 4-quadrant torque control/limit
  • 2 in 1 (induction motor and synchronous motor)
  • Built-in Delta PLC function, safe stop function and brake unit
  • Support of various network protocols
  • Synchronous position control
  • Long-life design and life detection of important components
  • Enhanced protections and adaptation to ambient conditions
  • Complies with global safety standards, including CE, UL and cUL
  • Modular design for easy maintenance and many extensions
  • High-speed communication interface with built-in CANopen and MODBUS communication (optional cards for PROFIBUS-DP, DeviceNet, MODBUS TCP and EtherNet/IP)

Standard Features

Drive Details

Manufacturer
Delta

Series
C2000

Model
VFD1850C43A

Condition
New Surplus

Constant/Variable Torque
CT/VT

Horse Power
250HP

Maximum Amps
CT: 352A
VT: 370A

Input
3 Phase
380 to 480V at 50/60Hz

Output
3 Phase
380 to 480V at 50/60Hz

Enclosure
IP00

Dimensions
Height: 48.83 in
Width: 19.69 in
Depth: 15.63 in
