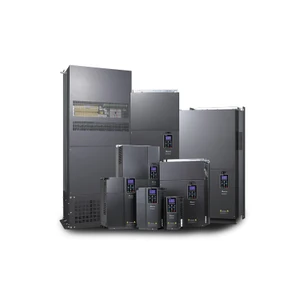

215HP & 175HP 460V Delta C2000 VFD, Inverter, AC Drive VFD1600C43A (VFD1600C43A)

Brand:
Delta
Model:
VFD1600C43A
Condition:
New
0 Customer Reviews
Out Of Stock
List Price:  $14,449.00
Online Price: $7,224.50
Adding to cart… The item has been added
  • Speed/torque/position control mode, dual rating design (Normal duty/heavy duty)
  • Outstanding 4-quadrant torque control/limit
  • 2 in 1 (induction motor and synchronous motor)
  • Built-in Delta PLC function, safe stop function and brake unit
  • Support of various network protocols
  • Synchronous position control
  • Long-life design and life detection of important components
  • Enhanced protections and adaptation to ambient conditions
  • Complies with global safety standards, including CE, UL and cUL
  • Modular design for easy maintenance and many extensions
  • High-speed communication interface with built-in CANopen and MODBUS communication (optional cards for PROFIBUS-DP, DeviceNet, MODBUS TCP and EtherNet/IP)

Technical Specifications

Model:
VFD1600C43A
Brand:
Delta
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
175 HP
Horsepower Rating:
215 HP
HP Rating @ 120% OL:
215 HP
HP Rating @ 150% OL:
175 HP
Rated Amps:
247 A
Amp Rating @ 110% OL:
310 A
Amp Rating @ 120% OL:
260 A
Amp Rating @ 150% OL:
247 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
260 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 20
Frame Size:
F1
Height:
31.50 in
Width:
16.54 in
Depth:
11.81 in

Product Information

Delta C2000 Series

Powerful Features. High Efficiency. The C2000 Series AC motor drive provides the most efficient solution for all types of drive applications. It features precise speed, torque and position control functions that are suitable for both sensor and sensorless types of synchronous and asynchronous motors. The C2000 Series is also equipped with built-in PLC functions and supports the CANopen Master/Slave extension for the ultimate in system flexibility and fast data exchange.

Highlights

  • Speed/torque/position control mode, dual rating design (Normal duty/heavy duty)
  • Outstanding 4-quadrant torque control/limit
  • 2 in 1 (induction motor and synchronous motor)
  • Built-in Delta PLC function, safe stop function and brake unit
  • Support of various network protocols
  • Synchronous position control
  • Long-life design and life detection of important components
  • Enhanced protections and adaptation to ambient conditions
  • Complies with global safety standards, including CE, UL and cUL
  • Modular design for easy maintenance and many extensions
  • High-speed communication interface with built-in CANopen and MODBUS communication (optional cards for PROFIBUS-DP, DeviceNet, MODBUS TCP and EtherNet/IP)

Standard Features

Drive Details

Manufacturer
Delta

Series
C2000

Model
VFD1600C43A

Condition
New Surplus

Constant/Variable Torque
CT/VT

Horse Power
215HP

Maximum Amps
CT: 295A
VT: 310A

Input
3 Phase
380 to 480V at 50/60Hz

Output
3 Phase
380 to 480V at 50/60Hz

Enclosure
IP00

Dimensions
Height: 37 in
Width: 16.54 in
Depth: 11.81 in
