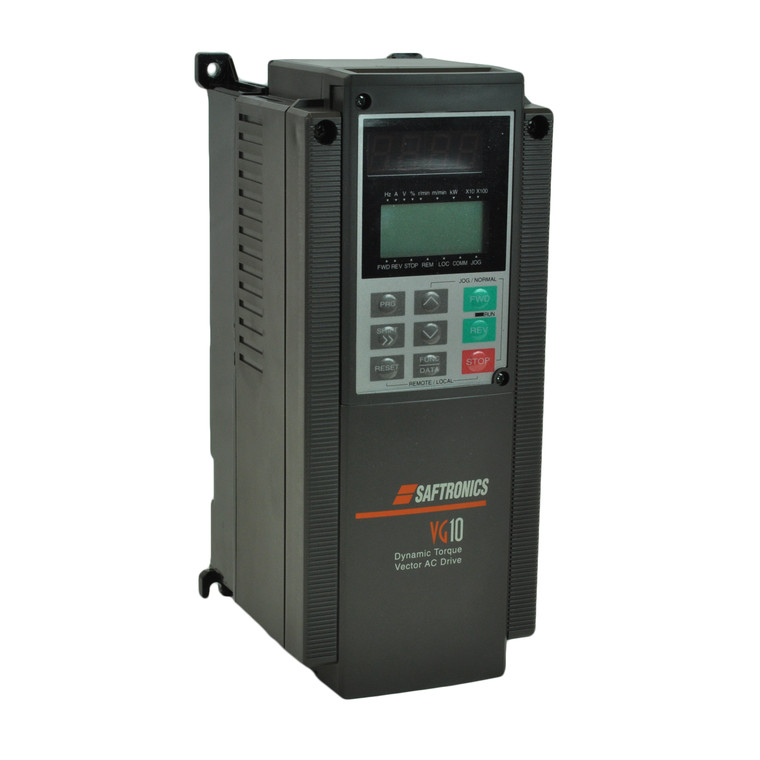

1HP 460V Saftronics VFD, Inverter, AC Drive VG104001-1
Brand: Saftronics
Model: VG104001-1-R3F8D
Condition: Seller refurbished
Compare with similar items
This Item
|
|
|
|
|
|
|
| 1HP 460V Saftronics VFD, Inverter, AC Drive VG104001-1 | 1HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00025UL-02 | 1HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00025UL-01 | 1HP 460V Saftronics VFD, Inverter, AC Drive S104001-4FS | 1HP 460V Hitachi VFD, Inverter, AC Drive L300P-007HBRM | 1HP 460V Mitsubishi VFD, Inverter, AC Drive FR-D740-022-NA | |
| Ratings | ||||||
| Price |
$463.99
|
$174.00
|
$174.00
|
$199.99
|
$199.99
|
List Price
$405.00
Online Price
$303.75
|
| Free Shipping |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
| Series |
VG10
|
G200
|
G200
|
S10
|
L300
|
D700
|
| Rated Amps |
2.5 A
|
2.5 A
|
2.5 A
|
2.3 A
|
2.5 A
|
2.2 A
|
| Enclosure Rating |
UL Type 1
|
IP 20
|
IP 20
|
UL Type 4X
|
UL Type 1
|
IP 20
|
| Brand |
Saftronics
|
GALT ELECTRIC
|
GALT ELECTRIC
|
Saftronics
|
HITACHI
|
MITSUBISHI
|
| Horsepower Rating |
1 HP
|
1 HP
|
1 HP
|
1 HP
|
1 HP
|
1 HP
|
| Rated Voltage |
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
| Model |
VG104001-1
|
G240-00025UL-02
|
G240-00025UL-01
|
S104001-4FS
|
L300P-007HBRM
|
FR-D740-022-NA
|
Technical Specifications
| Phase Rating | 3 Phase Input - 3 Phase Output |
|---|---|
| Constant Torque / Variable Torque | Variable Torque |
| Series | VG10 |
| Phase | Three Phase |
| Rated Amps | 2.5 A |
| Enclosure Rating | UL Type 1 |
| Brand | Saftronics |
| Horsepower Rating | 1 HP |
| Rated Voltage | 460 V |
| Product Condition | Seller refurbished |
| Output Voltage | 460 V |
| Output Amperage Rating | 2.5 A |
| HP Rating @ 150% OL | 1 HP |
| Amp Rating @ 150% OL | 2.5 A |
| Model | VG104001-1 |
| Height | 10.24 in |
| Width | 4.33 in |
| Depth | 5.71 in |
Product Information
Saftronics VG10 Series
The VG10 series drive is ideal for high-performing constant torque applications where fast torque response and precision are needed. Speed search, Soft-Switching, and automatic restart technology make the VG10 an optimal industrial drive.
Standard Features
- Closed loop flux vector, open loop (sensorless) vector, and Volts / Hertz control methods
- 400Hz maximum frequency
- Motor auto tuning including full dynamic tuning (spinning motor), static tuning (loaded motor, not spinning), and on-line tuning (continuous tuning while running)
- Graphic back-lit LCD keypad with digital LEDs
- Uniform programming parameters with the GP10 Series
- Soft switching technology to eliminate output filters
- Serial communication (RS485 Modbus Standard; Lon Works, Device Net, Ethernet, Metasys N2, Profibus-DP, and Interbus-S optional)
- Built in dynamic breaking
- Dual motor parameter table
- Saflink compatible
- Speed control accuracy of ?0.2% (?0.02% with PG)
- Overload protection of 150% for up to 1 minute.
