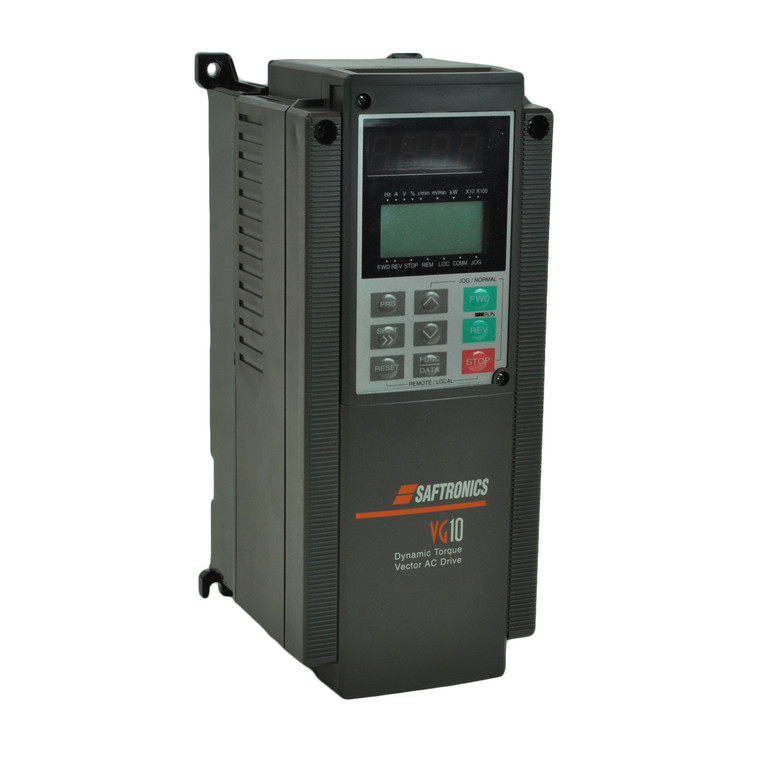

2HP 460V Saftronics VFD, Inverter, AC Drive VG104002-1

Brand: Saftronics
Model: VG104002-1-R3F8D
Condition: Seller refurbished
Rating:
0% of 100

Out of stock
$482.99
Compare with similar items

Technical Specifications
Phase Rating 3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque Variable Torque
Series VG10
Phase Three Phase
Rated Amps 3.7 A
Enclosure Rating UL Type 1
Brand Saftronics
Horsepower Rating 2 HP
Rated Voltage 460 V
Product Condition Seller refurbished
Output Voltage 460 V
Output Amperage Rating 3.7 A
HP Rating @ 150% OL 2 HP
Amp Rating @ 150% OL 3.7 A
Model VG104002-1
Height 10.24 in
Width 5.91 in
Depth 5.71 in
Product Information

Saftronics VG10 Series

The VG10 series drive is ideal for high-performing constant torque applications where fast torque response and precision are needed. Speed search, Soft-Switching, and automatic restart technology make the VG10 an optimal industrial drive.

Standard Features

  • Closed loop flux vector, open loop (sensorless) vector, and Volts / Hertz control methods
  • 400Hz maximum frequency
  • Motor auto tuning including full dynamic tuning (spinning motor), static tuning (loaded motor, not spinning), and on-line tuning (continuous tuning while running)
  • Graphic back-lit LCD keypad with digital LEDs
  • Uniform programming parameters with the GP10 Series
  • Soft switching technology to eliminate output filters
  • Serial communication (RS485 Modbus Standard; Lon Works, Device Net, Ethernet, Metasys N2, Profibus-DP, and Interbus-S optional)
  • Built in dynamic breaking
  • Dual motor parameter table
  • Saflink compatible
  • Speed control accuracy of ?0.2% (?0.02% with PG)
  • Overload protection of 150% for up to 1 minute.
