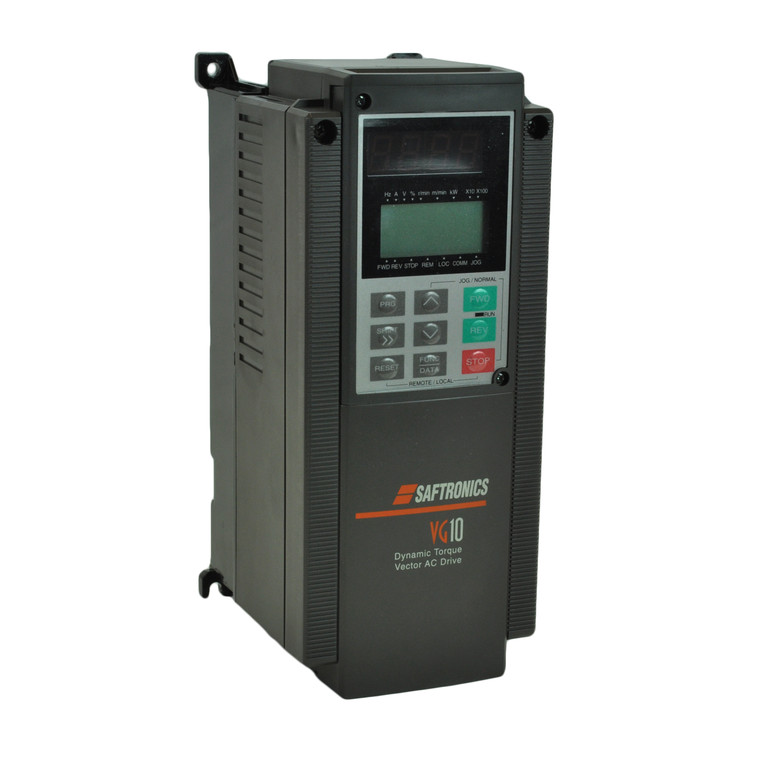

25HP 460V Saftronics VFD, Inverter, AC Drive VG104025-1
Brand: Saftronics
Model: VG104025-1-R3F8D
Condition: Seller refurbished
Compare with similar items
This Item
|
|
|
|
|
|
|
| 25HP 460V Saftronics VFD, Inverter, AC Drive VG104025-1 | 20HP & 25HP 460V Galt Electric G300 VFD, Inverter, AC Drive G340-00380UL-01 | 25HP 460V Mitsubishi F800E VFD, Inverter, AC Drive FR-F840-00380-E3N6 | 30HP 480V Mitsubishi VFD, Inverter, AC Drive FR-A540-18.5K-NA | 25HP 460V Delta MS300 VFD, Inverter, AC Drive VFD45AMS43ANSHA | 40HP & 30HP 460V Mitsubishi VFD, Inverter, AC Drive FR-A840-00620-1-N6 | |
| Ratings | ||||||
| Price |
$1,606.99
|
$1,021.00
|
List Price
$3,045.00
Online Price
$2,283.75
|
$999.99
|
List Price
$1,661.00
Online Price
$793.50
|
List Price
$6,845.00
Online Price
$5,133.75
|
| Free Shipping |
No |
Yes |
Yes |
Yes |
No |
Yes |
| Series |
VG10
|
G300
|
F800E
|
A500
|
MS300
|
A800
|
| Rated Amps |
39 A
|
32 A, 38 A
|
35 A, 38 A
|
38 A, 40 A
|
38 A, 41.5 A
|
38 A, 44 A, 57 A, 62 A
|
| Enclosure Rating |
UL Type 1
|
IP 20
|
UL Type 1
|
IP 20
|
IP 20
|
UL Type 1
|
| Frame Size |
|
|
E
|
|
F2
|
|
| Brand |
Saftronics
|
GALT ELECTRIC
|
MITSUBISHI
|
MITSUBISHI
|
Delta
|
MITSUBISHI
|
| Horsepower Rating |
25 HP
|
20 HP, 25 HP
|
25 HP
|
25 HP, 30 HP
|
25 HP
|
25 HP, 30 HP, 40 HP
|
| Rated Voltage |
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
| Model |
VG104025-1
|
G340-00380UL-01
|
FR-F840-00380-E3N6
|
FR-A540-18.5K-NA
|
VFD38AMS43AFSHA
|
FR-A840-00620-1-N6
|
Technical Specifications
| Constant Torque / Variable Torque | Variable Torque |
|---|---|
| Phase Rating | 3 Phase Input - 3 Phase Output |
| Series | VG10 |
| Phase | Three Phase |
| Rated Amps | 39 A |
| Enclosure Rating | UL Type 1 |
| Brand | Saftronics |
| Horsepower Rating | 25 HP |
| Rated Voltage | 460 V |
| Product Condition | Seller refurbished |
| Output Voltage | 460 V |
| Output Amperage Rating | 39 A |
| HP Rating @ 150% OL | 25 HP |
| Amp Rating @ 150% OL | 39 A |
| Model | VG104025-1 |
| Height | 15.75 in |
| Width | 9.84 in |
| Depth | 7.68 in |
Product Information
Saftronics VG10 Series
The VG10 series drive is ideal for high-performing constant torque applications where fast torque response and precision are needed. Speed search, Soft-Switching, and automatic restart technology make the VG10 an optimal industrial drive.
Standard Features
- Closed loop flux vector, open loop (sensorless) vector, and Volts / Hertz control methods
- 400Hz maximum frequency
- Motor auto tuning including full dynamic tuning (spinning motor), static tuning (loaded motor, not spinning), and on-line tuning (continuous tuning while running)
- Graphic back-lit LCD keypad with digital LEDs
- Uniform programming parameters with the GP10 Series
- Soft switching technology to eliminate output filters
- Serial communication (RS485 Modbus Standard; Lon Works, Device Net, Ethernet, Metasys N2, Profibus-DP, and Interbus-S optional)
- Built in dynamic breaking
- Dual motor parameter table
- Saflink compatible
- Speed control accuracy of ?0.2% (?0.02% with PG)
- Overload protection of 150% for up to 1 minute.
