16000-18000 BTU/h, NEMA 3R/4 Pfannenberg Cooling Unit, 13383536351 (13383536351)

16000-18000 BTU/h, NEMA 3R/4 Pfannenberg Cooling Unit, 13383536351 (13383536351)

Brand:
Pfannenberg
Model:
13383536351
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

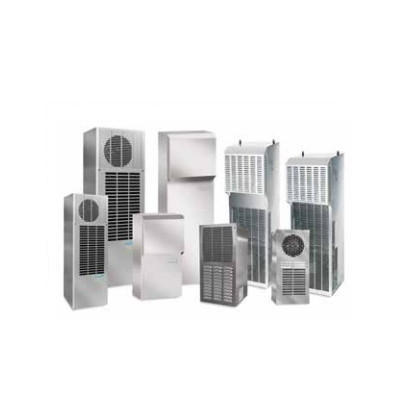

Pfannenberg DTS 3000 Series

DTS NEMA Type 3R/4

The DTS 3000 Series was designed for maximum longevity and efficiency. The units have a high ambient temperature performance, are environmentally friendly, and utilize an active condensate water management system. The DTS NEMA type 3R/4 has a steel powder coated cover, ideal for rugged environments.

Standard Features

Product Details

Manufacturer
Pfannenberg

Series
DTS 3000

Model
13383536351

Condition
New

Cooling Capacity (BTU/h)
16000-18000

95/95 Rating (BTU/h)
15200

Nominal Current
5.3/4.9A

Starting Current
16.0A

Input
3-Phase
360-506V

Output
3-Phase
360-506V

Enclosure
NEMA 3R/4

Construction Material
Gray Powder Coated Steel

Refrigerant Type
R134a

Ambient Temp. Range
0-55° C

Filter Included
No

Dimensions
Height: 59.13 in
Width: 19.02 in
Depth: 21.02 in

Download Manual
